Cougar/XR7 V8-4.6L VIN W (1997)

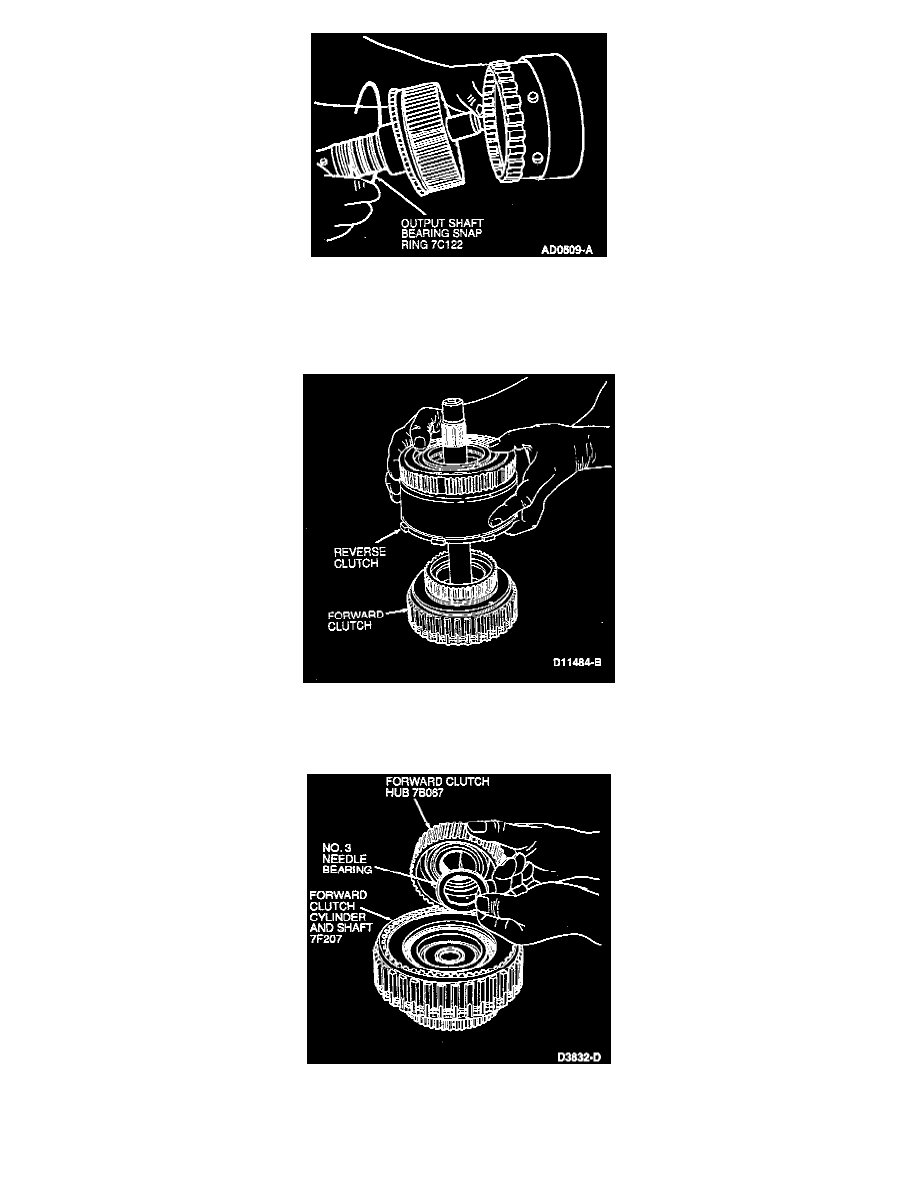

15. Install ring gear and snap ring on output shaft.
16. The following components may be installed as an assembly:
-
intermediate one-way clutch
-
reverse clutch
-
forward clutch
17. Install reverse clutch assembly on forward clutch assembly.
Forward Clutch
DISASSEMBLY
1. Remove forward clutch hub and No.3 forward clutch hub front bearing, if not already removed.
NOTE: Forward clutch hub may remain in shell during disassembly.
