Cougar/XR7 V8-4.6L VIN W (1997)

Page 17
background image

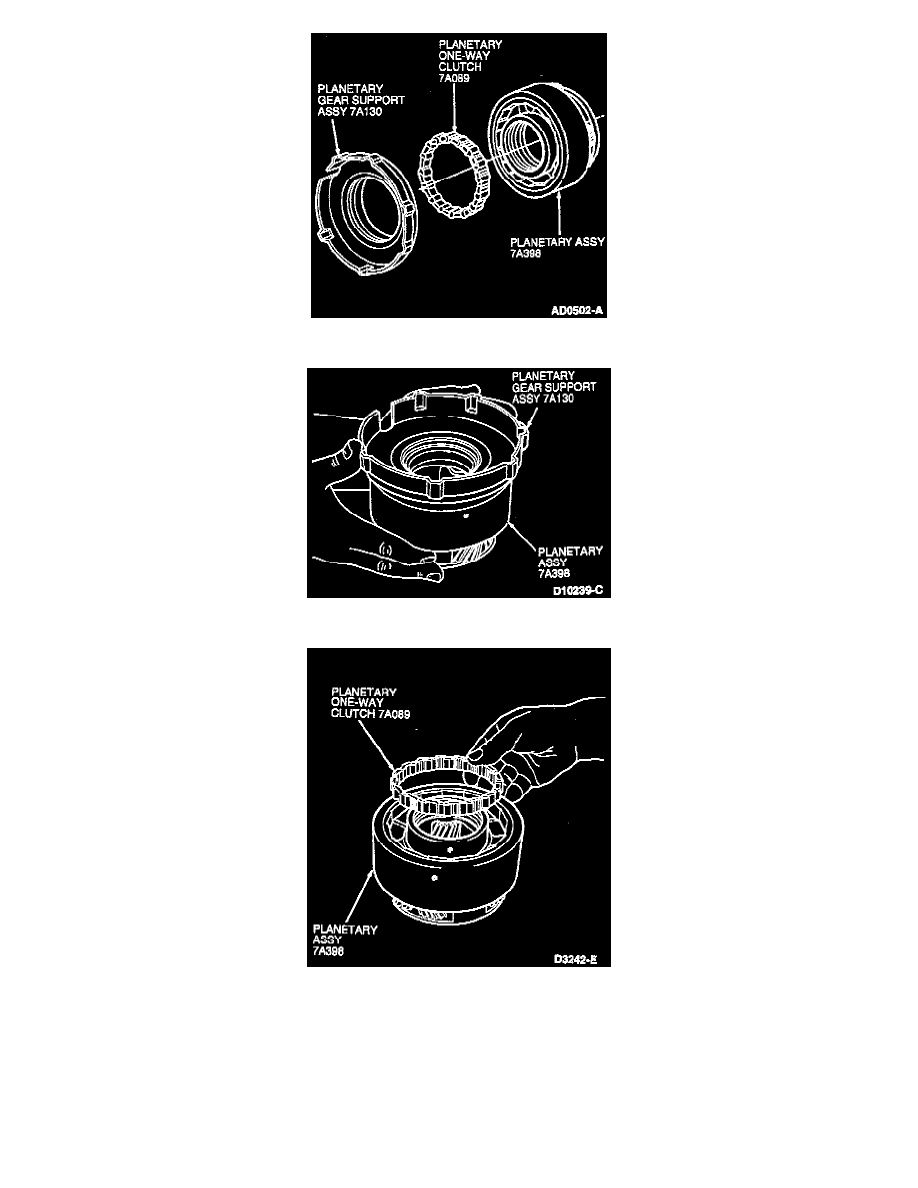

DISASSEMBLY

1. Remove planetary gear support assembly from forward planetary assembly. Rotate the planetary gear support assembly counterclockwise and lift.

2. Carefully remove planetary one-way clutch from forward planetary assembly.
