Grand Marquis V8-4.6L (2008)
Cowl Moulding / Trim: Service and Repair

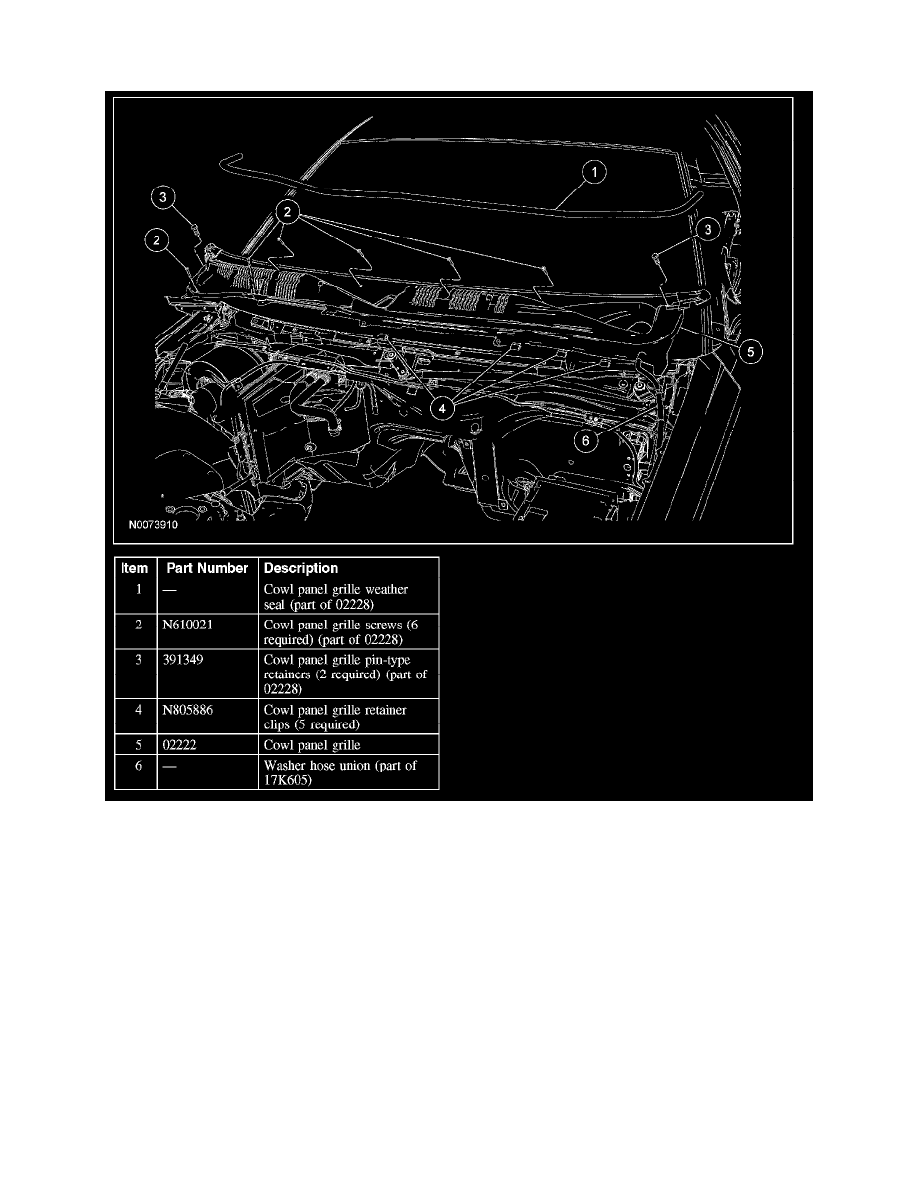

COWL PANEL GRILLE
Removal and Installation
1. Remove the wiper pivot arms.
2. Remove the 6 cowl panel grille screws.
3. Remove the 2 cowl panel grille pin-type retainers.
4. Remove the 4 cowl panel grille retainer clips.
5. Position the cowl panel grille aside and disconnect the washer hose union.
6. Remove the cowl panel grille.
7. To install, reverse the removal procedure.
-
If installing a new cowl panel grille, transfer components as necessary.
