Grand Marquis V8-4.6L (2008)
Arm Rest: Removal and Replacement

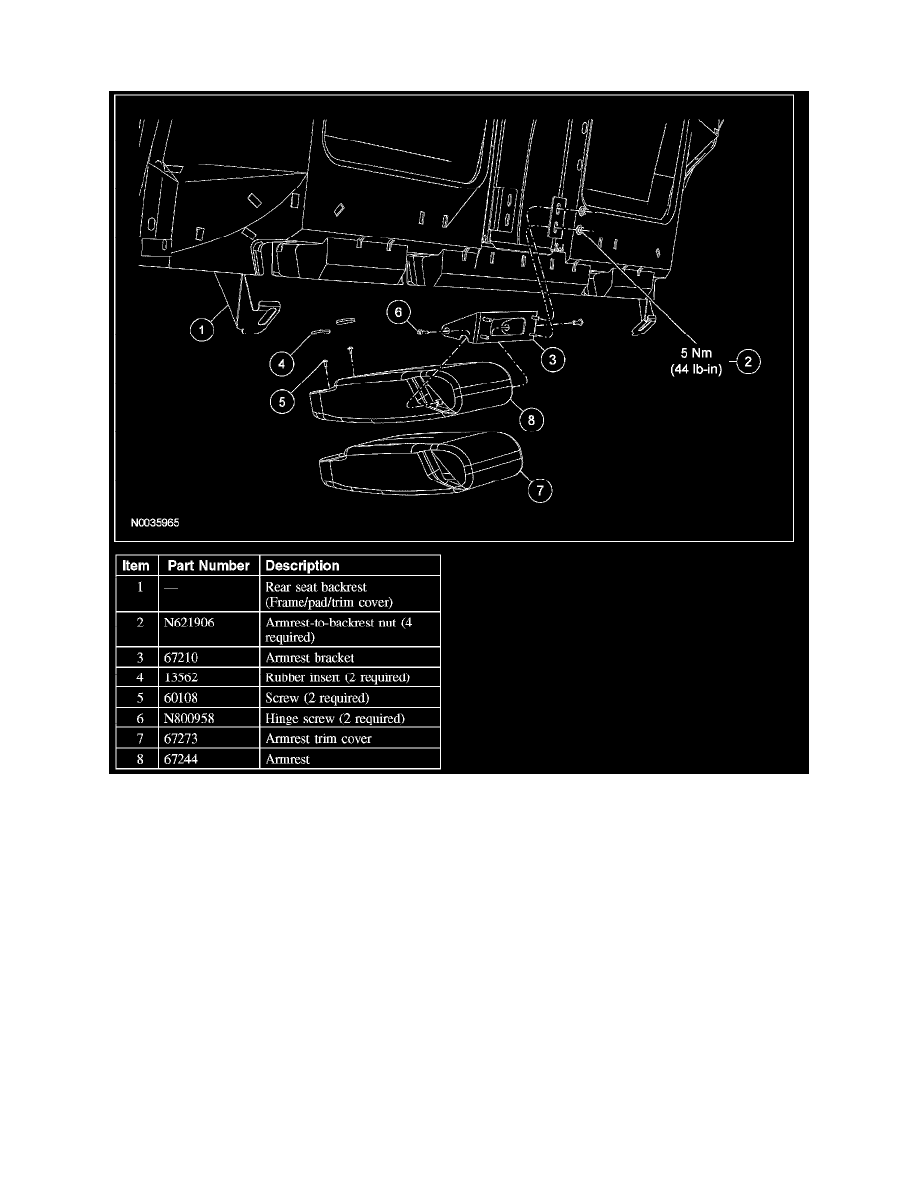

SEAT ARMREST - REAR
Removal and Installation
1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire
Suppression System. Failure to follow the instructions may result in serious personal injury.
For police vehicles equipped with a fire suppression system, depower the system.
2. Remove the rear seat cushion and backrest.
3. Remove the 4 nuts.
-
To install, tighten to 5 Nm (44 lb-in).
4. Remove the armrest.
5. WARNING: The retaining wires in the rear seat cushion foam pad and frame, and rear seat backrest foam pad and frame must be fully
seated in the retainer brackets to prevent the seat backrest and seat cushion from sliding forward in the event of a crash. Failure to follow
these instructions may increases the risk of serious personal injury or death in a crash.
To install, reverse the removal procedure.
-
Make sure the safety belts and buckles are accessible to the occupants after installation.
-
Verify the safety belt retractor operates without excessive effort or binding.
