Grand Marquis V8-4.6L (2008)
Intake Air Duct: Service and Repair
AIR CLEANER OUTLET PIPE

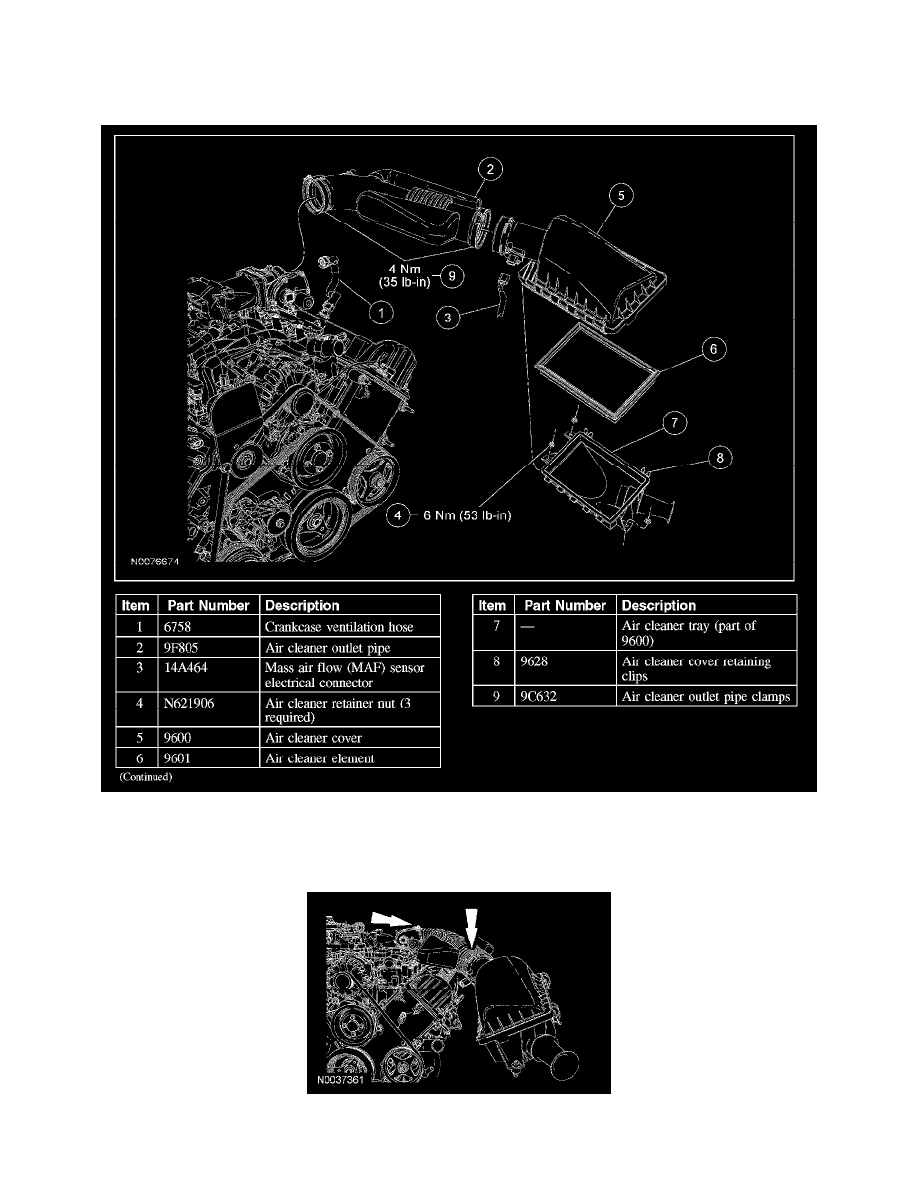

Exploded View
Removal and Installation
1. Disconnect the crankcase ventilation hose quick connect coupling from the air cleaner outlet pipe.
2. Loosen the clamps on both ends of the air cleaner outlet pipe.
-
To install, tighten to 4 Nm (35 lb-in).
3. Remove the air cleaner outlet pipe.
4. To install, reverse the removal procedure.
