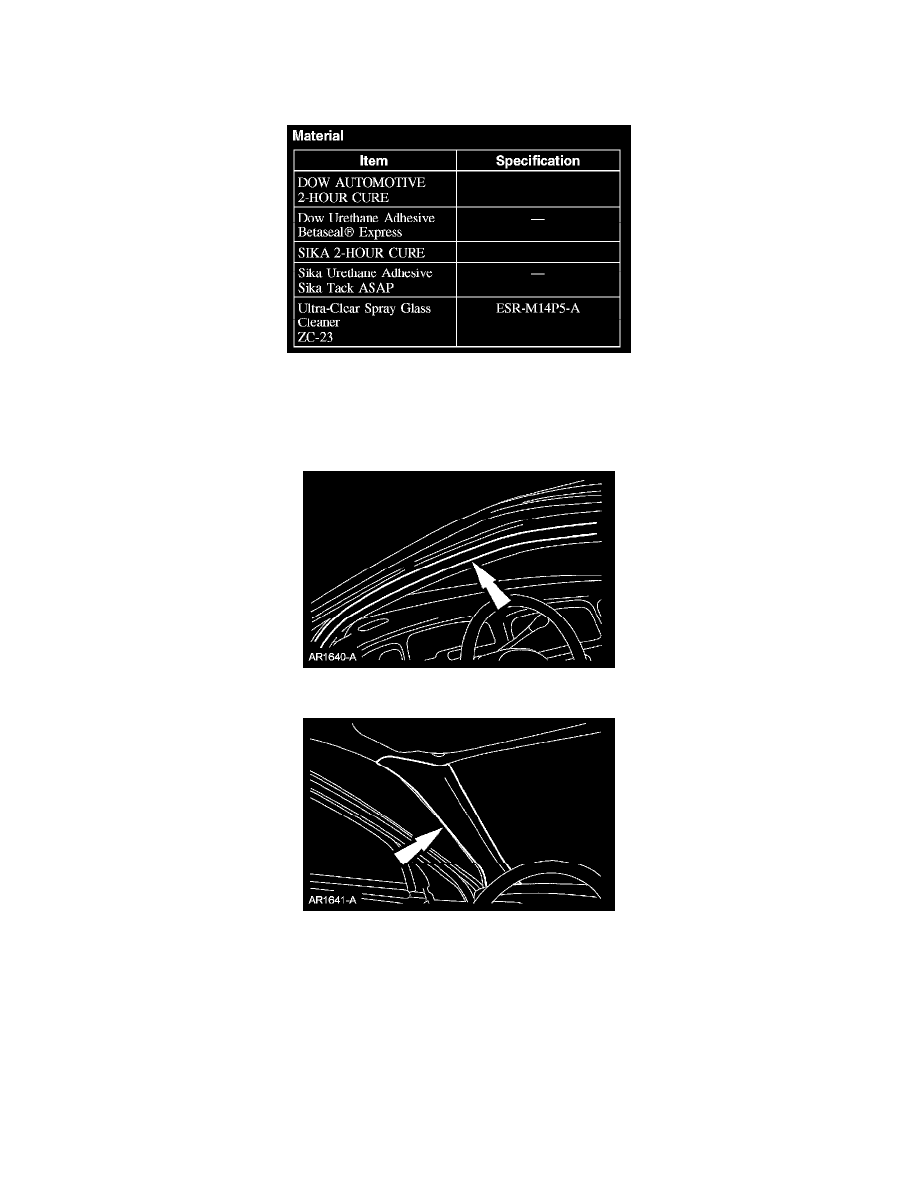

Windshield: Procedures

GLASS RESEAL - WINDSHIELD

Material

Material

1. Remove the cowl panel grille.
2. Remove the screws and LH and RH sun visors and clips.
3. Position the LH and RH front door weatherstrips aside.

4. Remove the LH and RH A-pillar trim panels.

5. If equipped, remove the overhead console.
6. If equipped, remove the roof opening panel headliner retainer.
