Grand Marquis V8-4.6L Flex Fuel (2010)
Trunk / Liftgate Lock Cylinder: Service and Repair

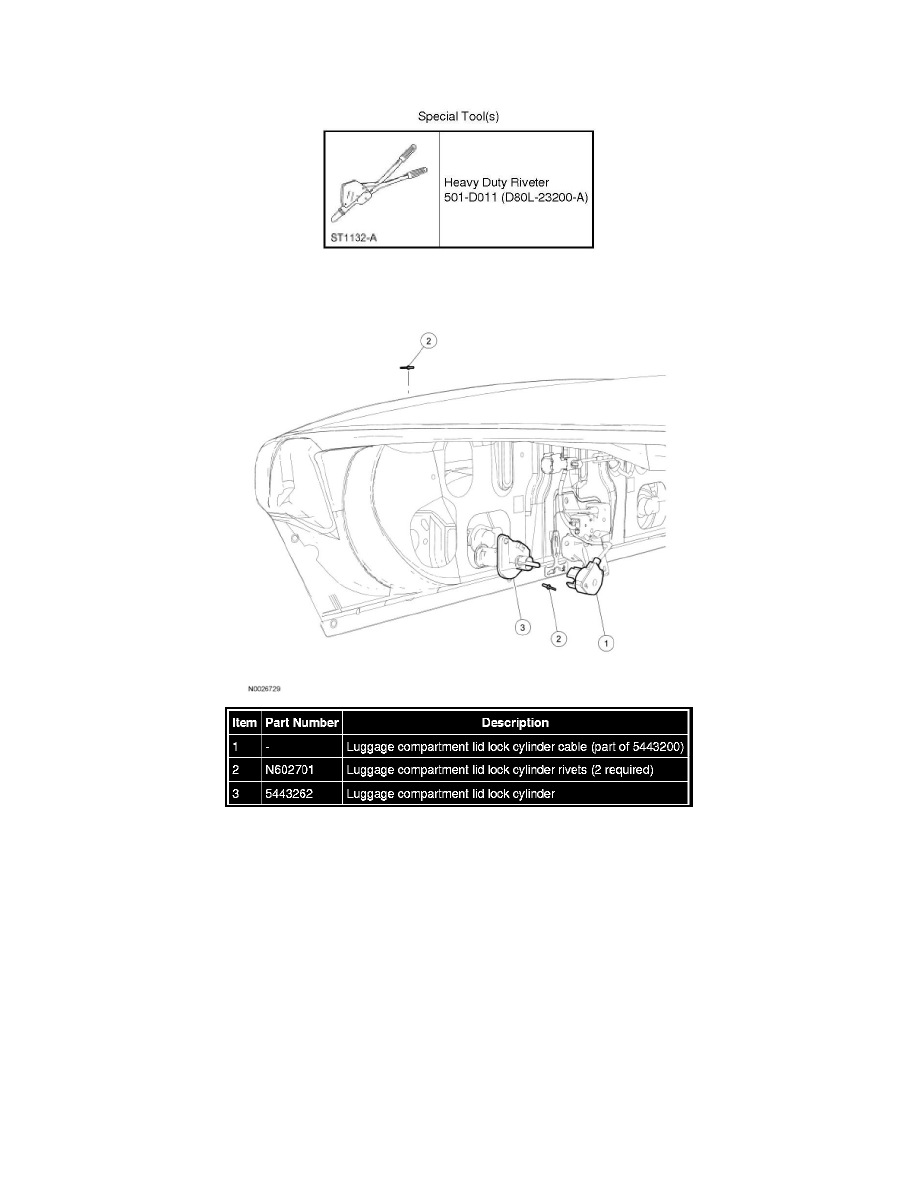

Luggage Compartment Lid Lock Cylinder
Removal and Installation
NOTE: Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock
repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
1. Remove the license plate housing. For additional information, refer to Auxiliary Step / Running Board.
2. Release the clips and disconnect the luggage compartment lid lock cylinder cable.
3. If equipped, disconnect the luggage compartment anti-theft inhibit switch electrical connector.
4. Remove the 2 luggage compartment lid lock cylinder rivets.
5. Remove the luggage compartment lid lock cylinder.
6. To install, reverse the removal procedure.
-
Use the special tool to install the new rivets.
