Grand Marquis V8-4.6L SOHC VIN W (2005)
Front Fender Liner: Service and Repair
Fender Splash Shield - LH
FENDER SPLASH SHIELD - LH
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery.
3. Remove the washer pump and reservoir.

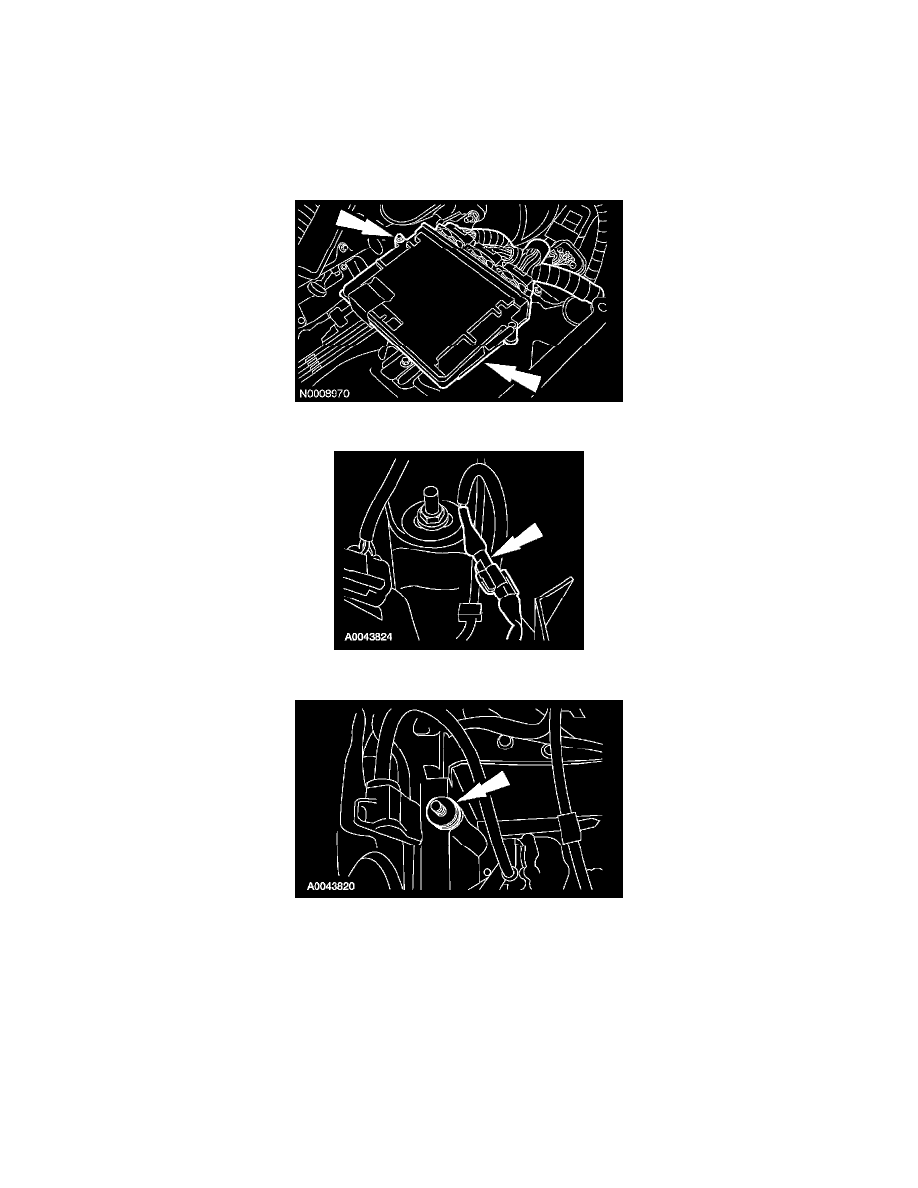

4. Remove the bolt and position the powertrain control module (PCM) aside.
5. Release the front anti-lock brake system (ABS) sensor wiring harness from the fender splash shield.
6. Remove the air cleaner mounting insulators.
