Grand Marquis V8-4.6L SOHC VIN W (2005)

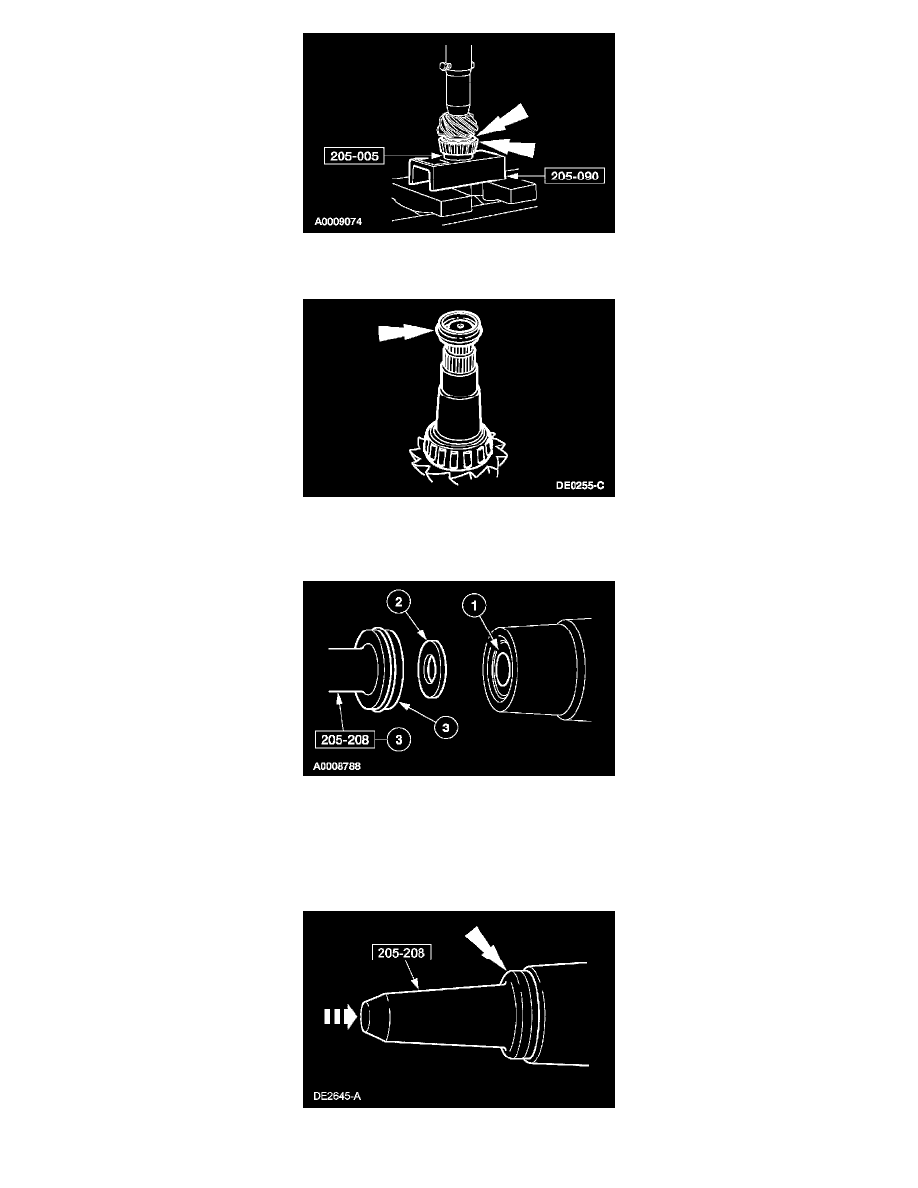

11. Position the correct thickness drive pinion bearing adjustment shim and the differential pinion bearing on the drive pinion. Using a suitable press
and the special tools, press the differential pinion bearing until it seats firmly on the pinion.
12. Place a new differential drive pinion collapsible spacer on the pinion shaft against the pinion stem shoulder.
13. CAUTION: Installation without the correct tool can result in early seal failure.
Install a new rear axle drive pinion seal.
1
Install the front differential pinion bearing.
2
Install the rear axle drive pinion shaft oil slinger.
3
Position the rear axle drive pinion seal on the special tool.
14. CAUTION: If the rear axle drive pinion seal becomes misaligned during installation, remove the seal and install a new seal.
Position the rear axle drive pinion seal in the seal bore, and use the special tool to drive the seal into place.
