Grand Marquis V8-4.6L SOHC VIN W (2005)

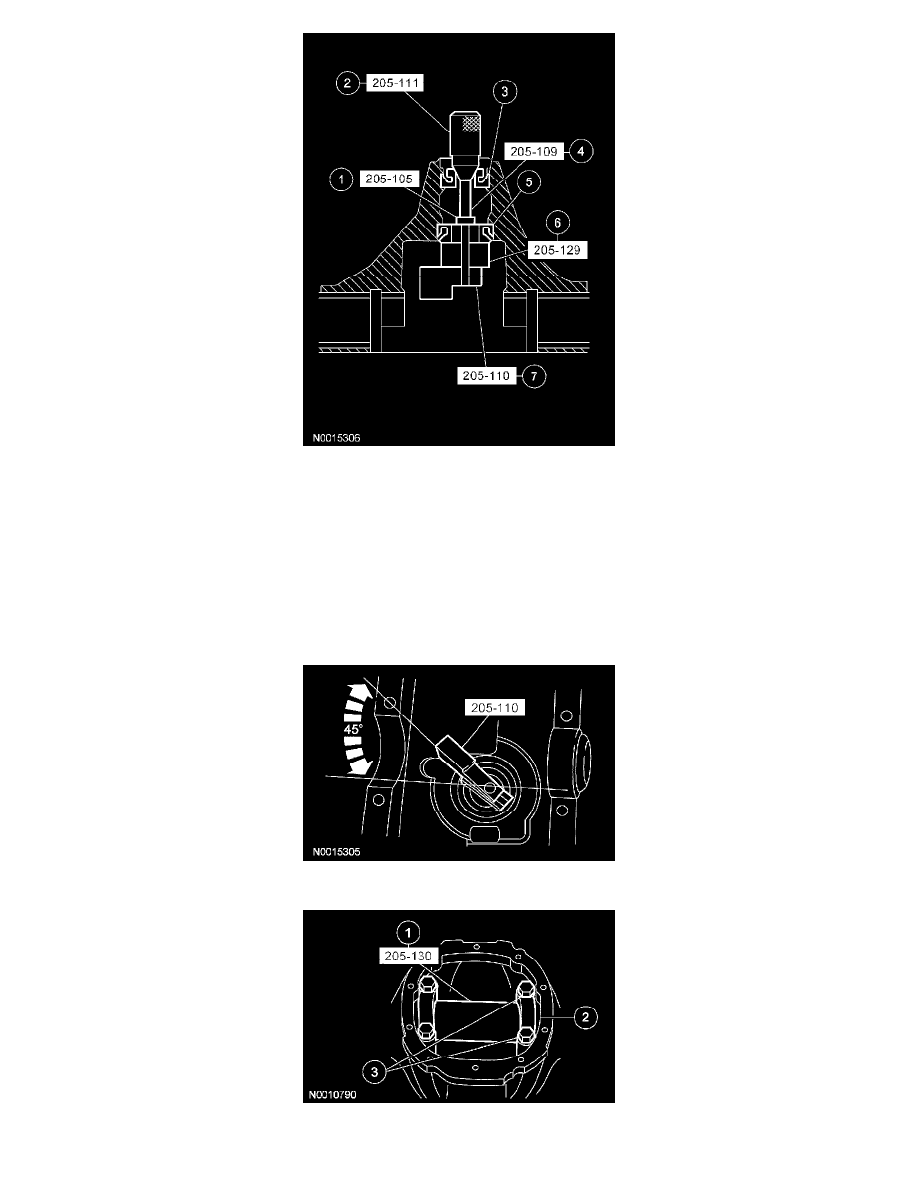

Assemble and position the drive pinion depth gauge set.
1
Position the screw.
2
Position the aligning adapter.
3
Position the gauge disc.
4
Position the gauge block.
5
Position the inner drive pinion bearing.
6
Position the outer drive pinion bearing.
7
Thread on the handle and tighten.
-
Tighten to 2.2 Nm (20 inch lbs.)
6. NOTE: The gauge block must be offset to obtain an accurate reading.
Rotate the gauge block several half turns to make sure of correct seating of the drive pinion bearings and position the gauge block.
7. Install the special tool.
