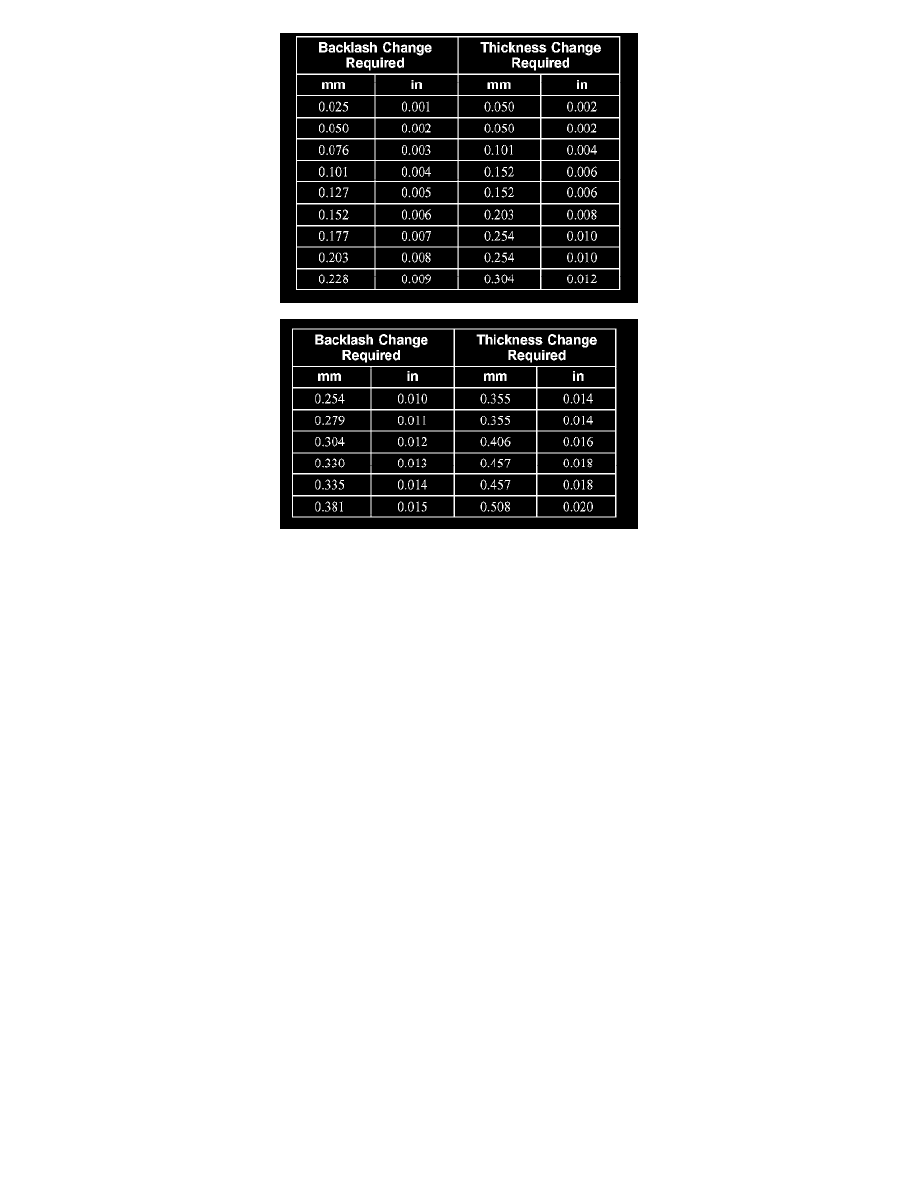

24. To correct for high or low backlash, increase the thickness of one differential bearing shim and decrease the thickness of the other differential

bearing shim by the same amount. Refer to the following tables when adjusting the backlash. When the backlash is within specifications, proceed
to Step 25.
