Lynx L4-98 1.6L SOHC Turbo VIN 8 FI (1984)

Page 2
background image

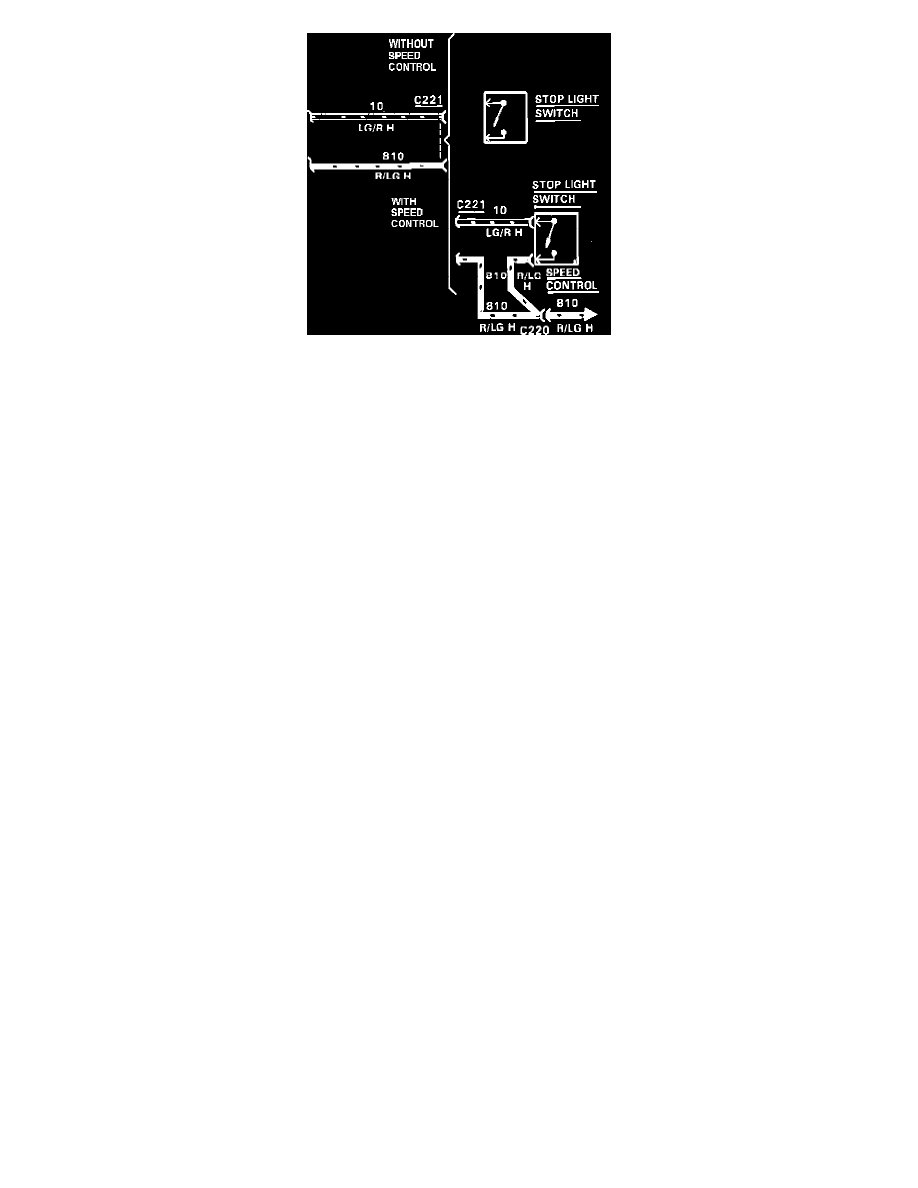

Fig. 100  Stop, turn & hazard lamp wiring circuit (Part 2 of 2).  1984 Escort & Lynx 3 & 5 door models
