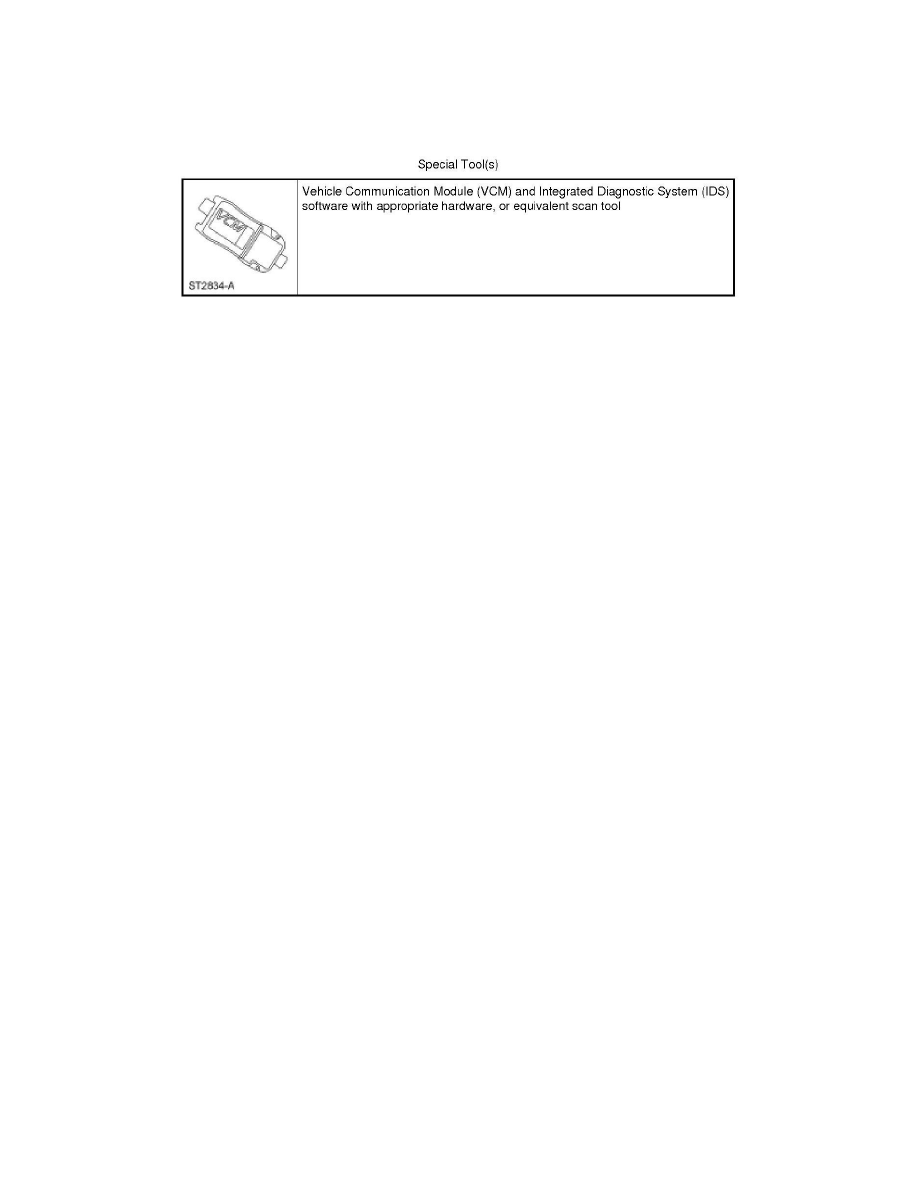

Mariner 2WD L4-2.5L (2009)
12. NOTE: When installing a service part OCS, the seat wire harness pressure sensor electrical connector is not used.
NOTE: Make sure the pressure sensor hose is not kinked during installation.
Install the OCS system components to the seat cushion frame.
1. Install the pressure sensor onto the seat cushion frame bracket, making sure the retaining tab is completely engaged.
-
When installed correctly, an audible click will be heard and the pressure sensor will not be able to be removed from its bracket without
disengaging the retaining tab.
2. Slide the OCSM into the seat cushion frame bracket.
-
The OCSM must be correctly positioned and securely fastened in place. Failure to do so can set a DTC in the RCM.
3. Install the rivets.
