Alignment: Description and Operation
Camber

Wheel Alignment Angles

Camber

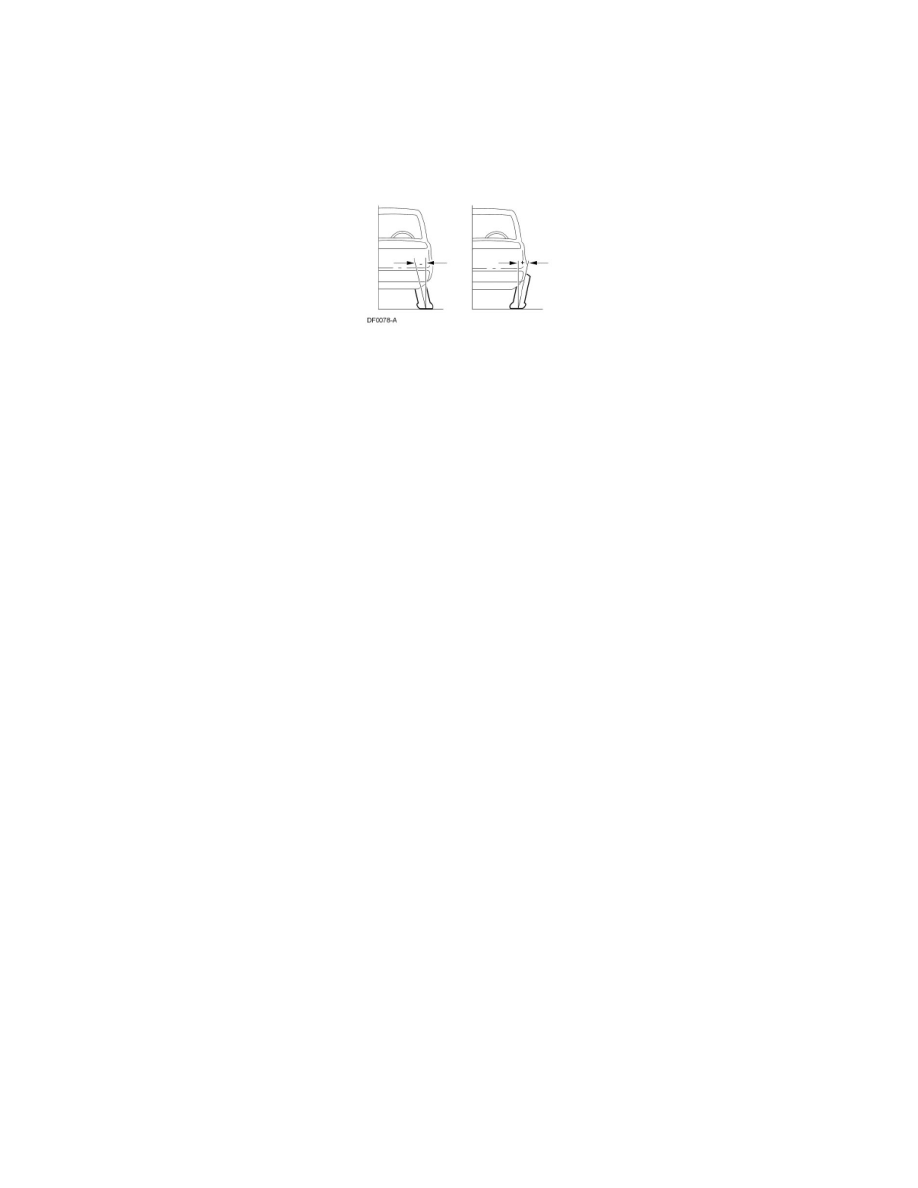

Negative and Positive Camber

Camber is the vertical tilt of the wheel when viewed from the front. Camber can be positive or negative and has a direct effect on tire wear.
