Mariner 2WD V6-3.0L VIN 1 (2006)
Rear Door Panel: Service and Repair
REAR DOOR TRIM PANEL

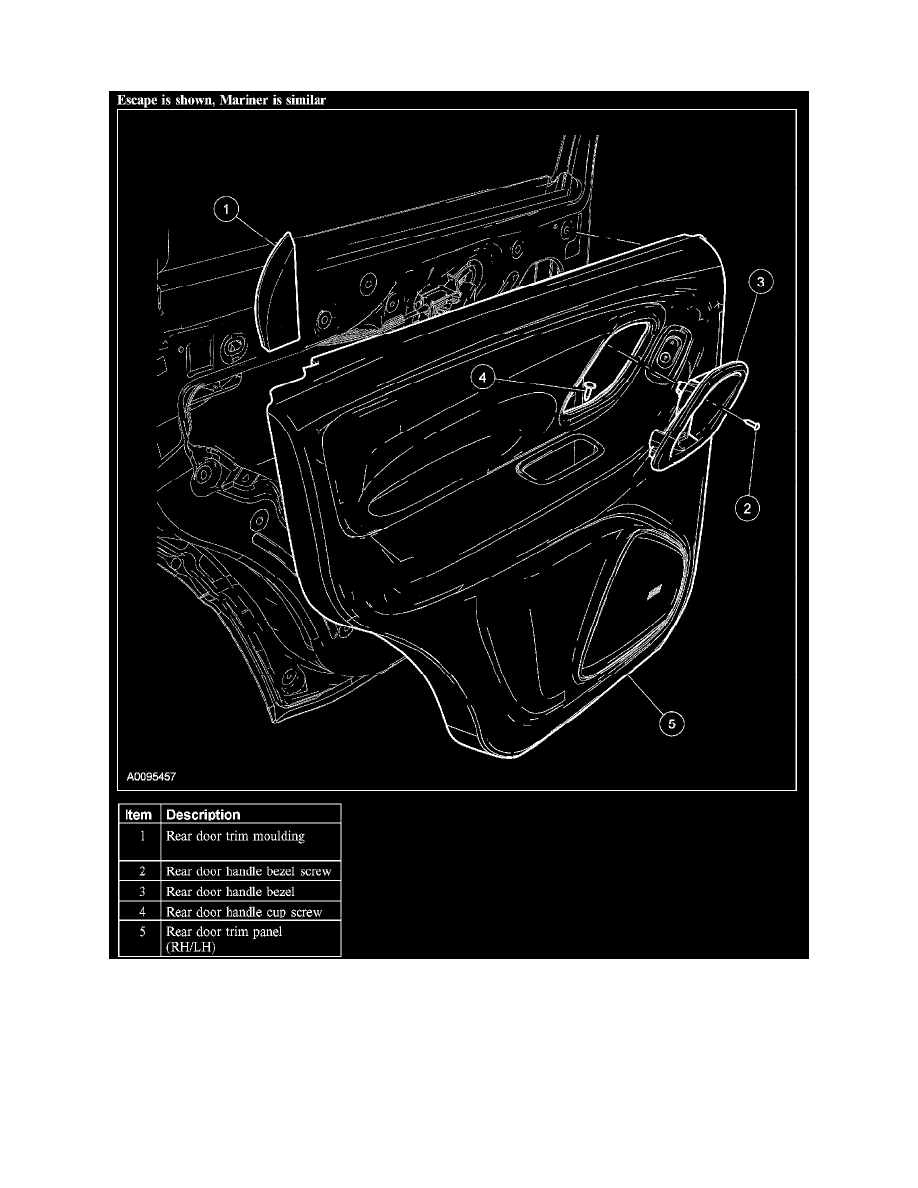

Escape Is Shown, Mariner Is Similar
Removal and Installation
NOTE: LH side is shown. RH side is similar.
1. Remove the rear door trim moulding.
2. Open the cover, remove the screw and the rear door handle bezel.
3. Remove the rear door handle cup screw.
4. Remove the rear door trim panel.
