Mariner 2WD V6-3.0L VIN 1 (2006)
Brake Master Cylinder: Service and Repair

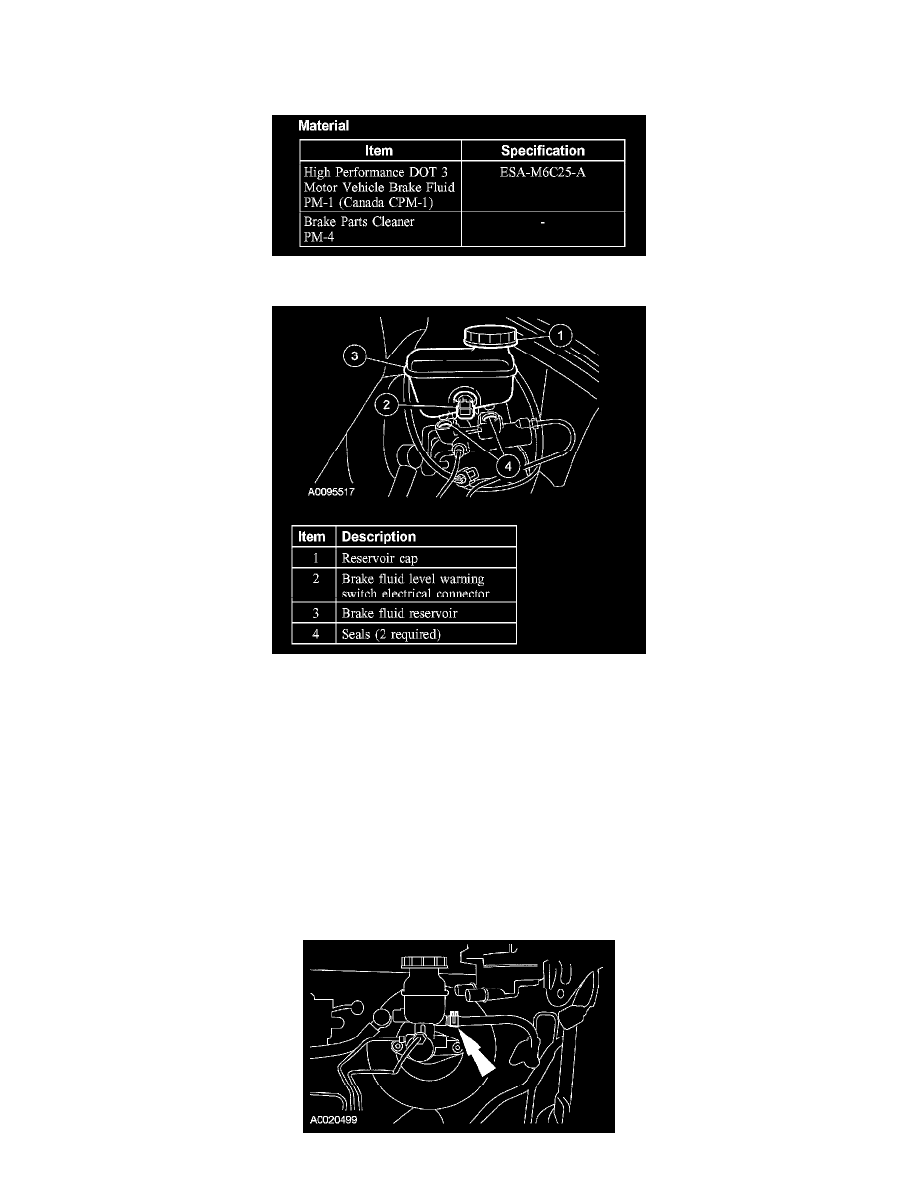

Brake Fluid Reservoir
Brake Fluid Reservoir
Material
Removal and Installation
WARNING: Use of any other than approved DOT 3 motor vehicle brake fluid will cause permanent damage to brake components and will
render the brakes inoperative. Failure to follow these instructions may result in personal injury.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If
brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with
water.
1. Remove the reservoir cap.
2. Disconnect the brake fluid level warning switch electrical connector.
3. Using a suitable suction device, remove the brake fluid from the brake master cylinder reservoir.
