Mariner 2WD V6-3.0L VIN 1 (2006)
Parking Brake Warning Switch: Service and Repair

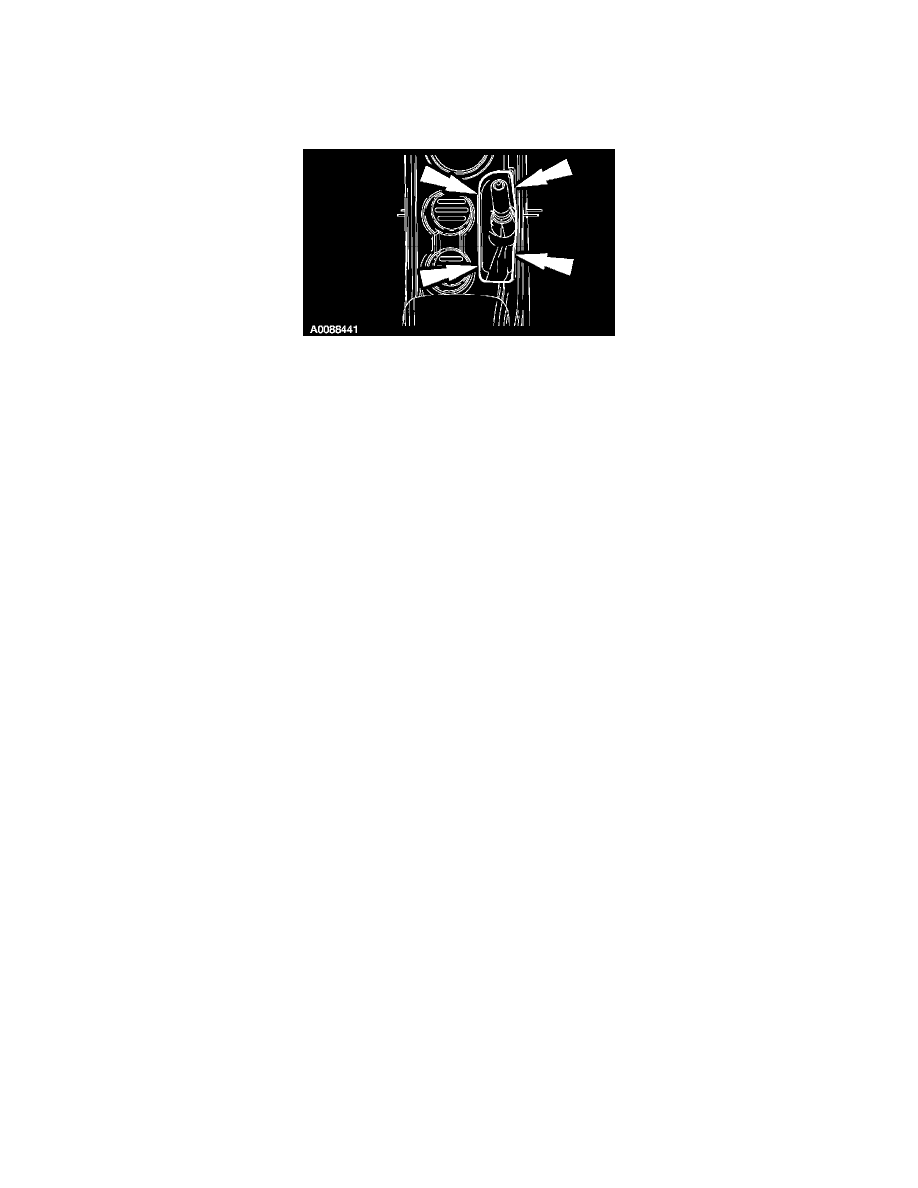

Parking Brake Warning Indicator Switch
Parking Brake Warning Indicator Switch
Removal and Installation
1. Release the parking brake control boot clips at the floor console by pressing inward on the base of the boot.
2. Remove the warning indicator switch screw.
3. Disconnect the warning indicator switch electrical connector.
4. Remove the warning indicator switch.
5. To install, reverse the removal procedure.
