Mariner 2WD V6-3.0L VIN 1 (2006)
Early Build

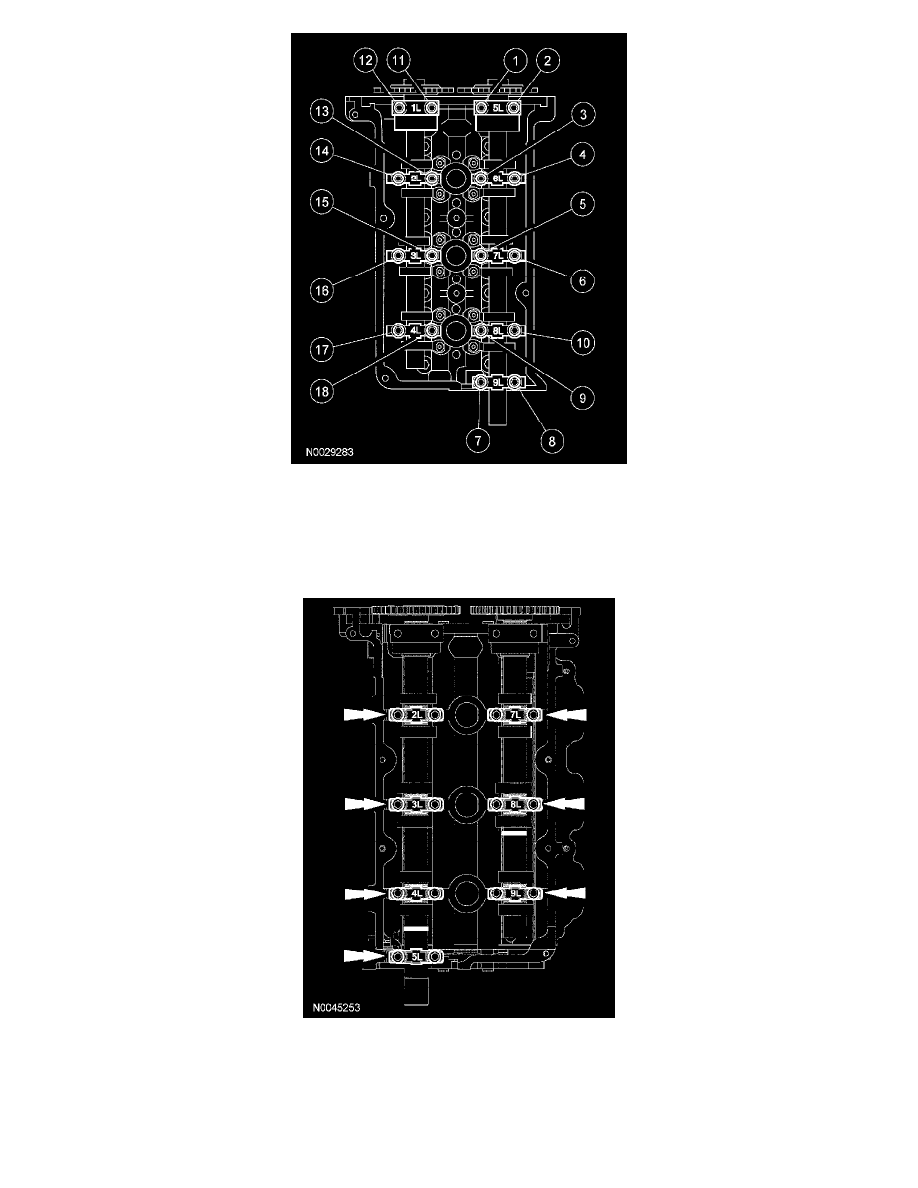

4. Install the bolts.
^
Tighten in the sequence shown to 8 Nm (71 inch lbs.).
Late build engines
5. CAUTION: Do not install the camshaft bearing thrust caps until all of the camshaft bearing caps have been installed, or damage to the thrust caps
may occur.
Lubricate the bearing surfaces of the camshaft bearing caps with clean engine oil and install the bearing caps.
^
Loosely install the bolts.
