Mariner 2WD V6-3.0L VIN 1 (2006)
Air Door Actuator / Motor: Service and Repair
Recirculation Blend Door Actuator
RECIRCULATION BLEND DOOR ACTUATOR
Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding, Dashboard/Instrument Panel, Service and Repair, Instrument Panel,
See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Instrument Panel

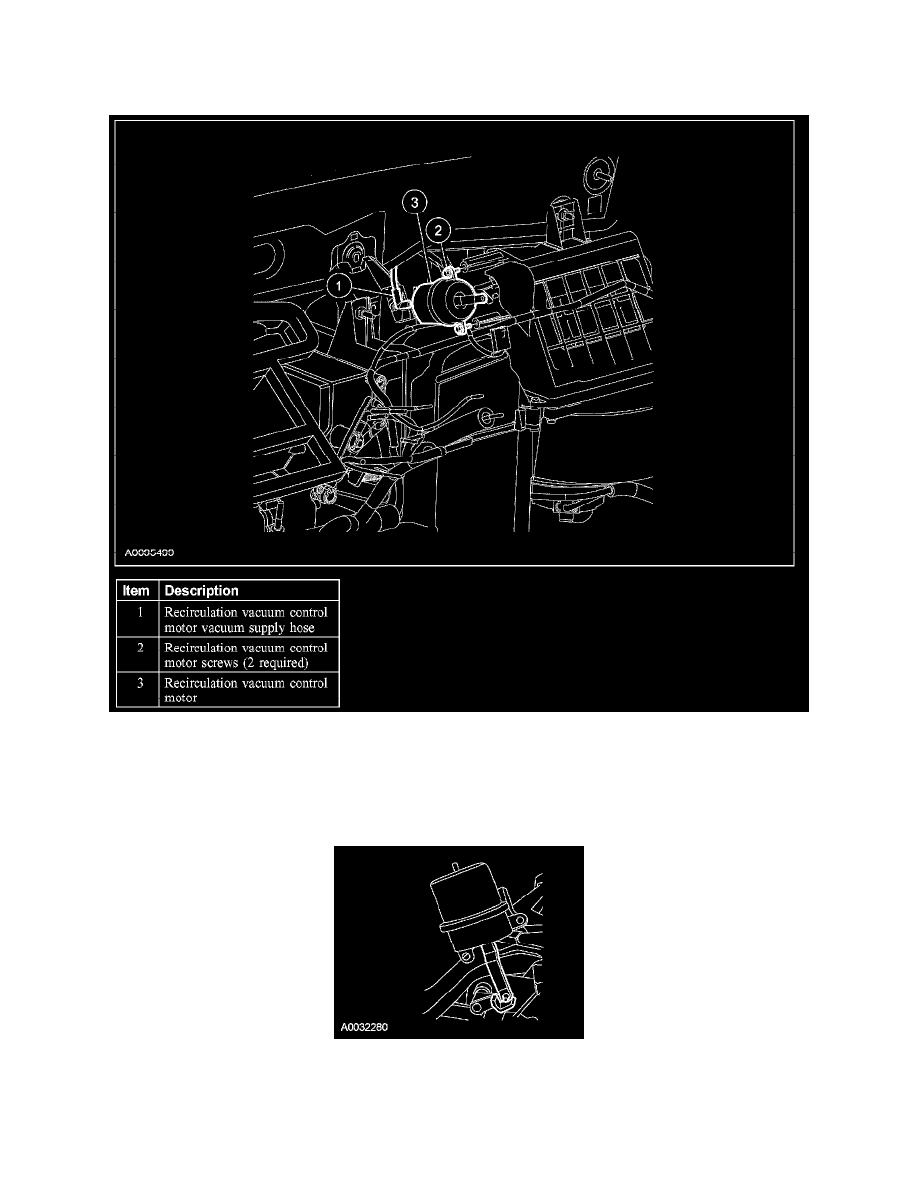

2. Disconnect the recirculation vacuum control motor vacuum supply hose.
3. Remove the 2 recirculation vacuum control motor screws.
4. Rotate the vacuum control motor until it clears the retaining arm and remove the vacuum control motor.
5. To install, reverse the removal procedure.
