Mariner 2WD V6-3.0L VIN 1 (2006)
3. CAUTION: Care must be taken during the removal of the plug to prevent damage. If the plug is damaged, a new sensor may need to be installed,
even though the sensor is functional in all other aspects.

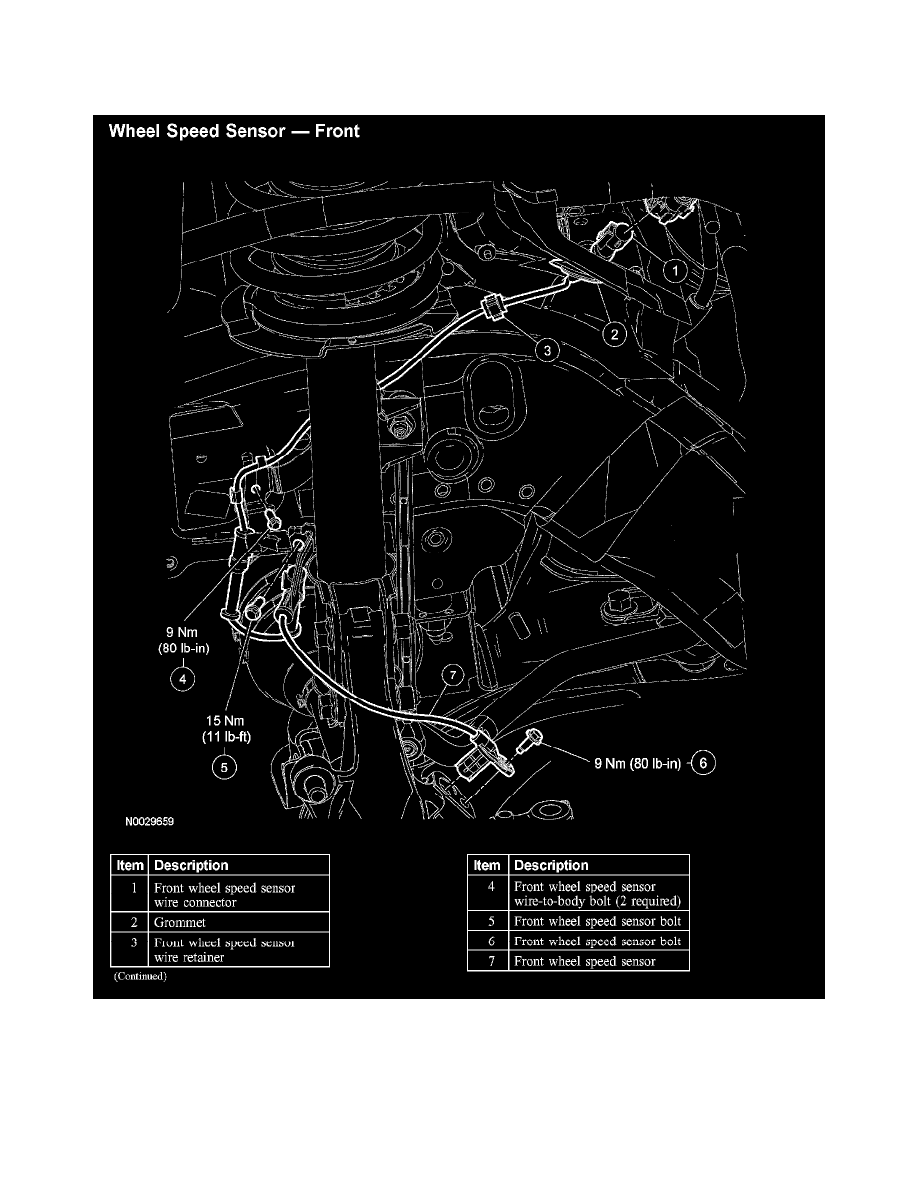

Remove the grommet from the body.
^

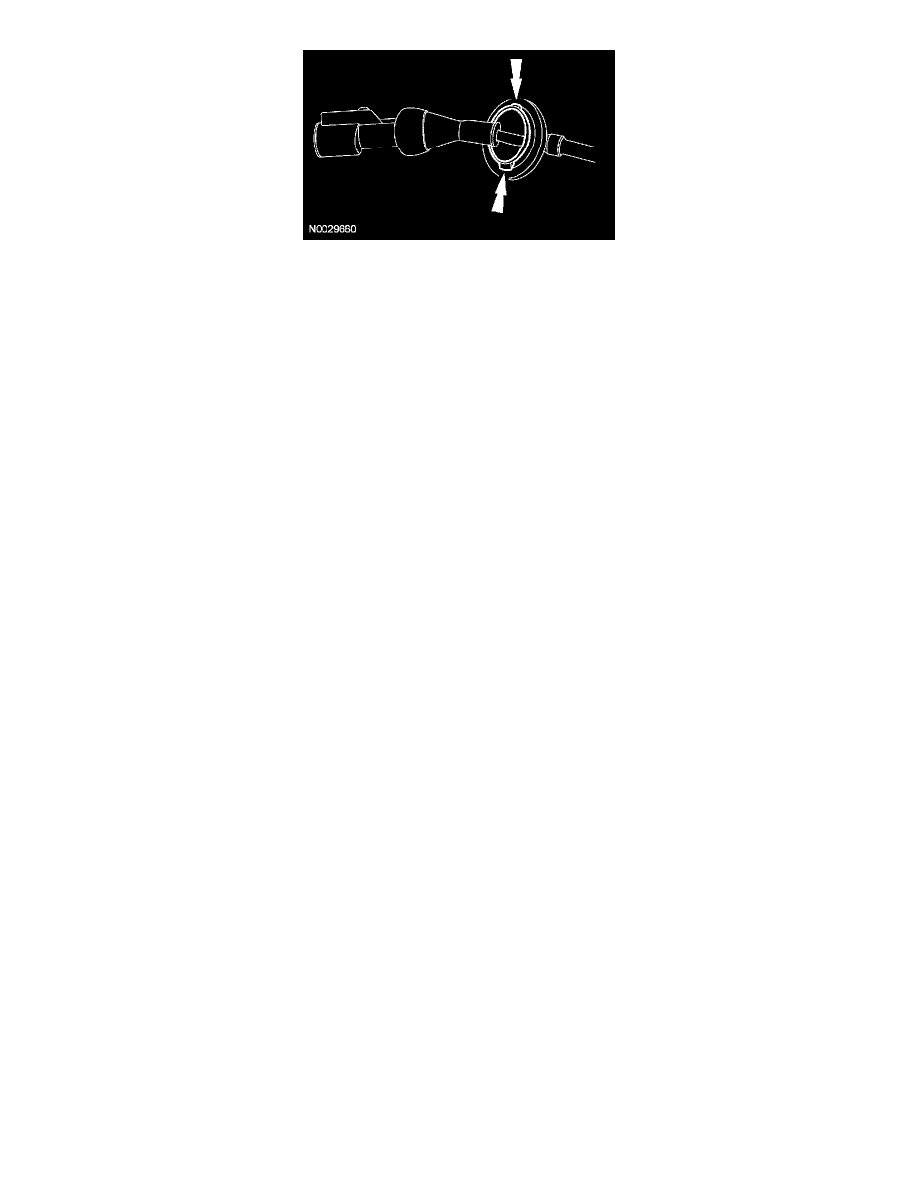

When removing the body plug, rotate the plug into a position which allows the use of a small screwdriver to release the tabs on the underside
of the body plug. These 2 tabs are located at right angles to the sensor wire.
4. Remove the front wheel speed sensor wire from the retainer.
5. Remove the front wheel speed sensor wire-to-body bolt.
^
To install, tighten to 9 Nm (80 inch lbs.).
6. Remove the front wheel speed sensor wire bolt.
^
To install, tighten to 15 Nm (11 ft. lbs.).
7. Remove the front wheel speed sensor bolt from the wheel knuckle.
^
To install, tighten to 9 Nm (80 inch lbs.).
8. NOTE: Clean off any foreign material that may have collected around the sensor before removal.
Remove the front wheel speed sensor.
9. NOTE: Thoroughly clean the mounting surface.
To install, reverse the removal procedure.
