Mariner 2WD V6-3.0L VIN 1 (2006)
Suspension Spring ( Coil / Leaf ): Service and Repair
Front
Removal and Installation

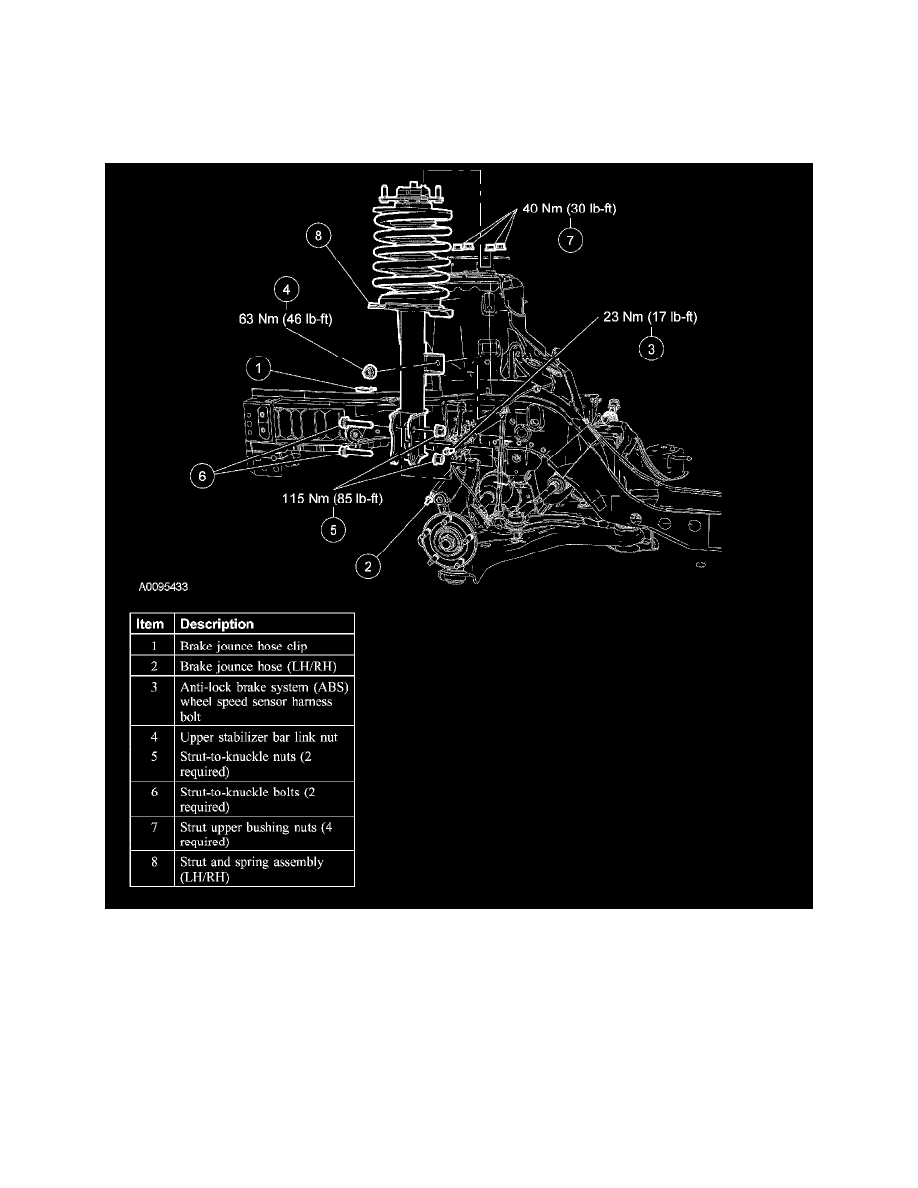

Strut and Spring Assembly
Removal
NOTE: LH side shown, RH side similar.
1. NOTE: Verify the steering wheel is in the unlocked position before removal.
With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the brake jounce hose clip.
3. Pull the brake jounce hose downward slightly to remove the hose from the bracket and position the brake jounce hose aside.
4. Remove the anti-lock brake system (ABS) wheel speed sensor harness bolt.
5. NOTE: Use the hex holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.
