Mariner 2WD V6-3.0L VIN 1 (2006)
1. NOTE: The main control cover gasket is a reusable type. Inspect the gasket for damage. Install a new gasket as necessary.
Install the main control cover gasket.

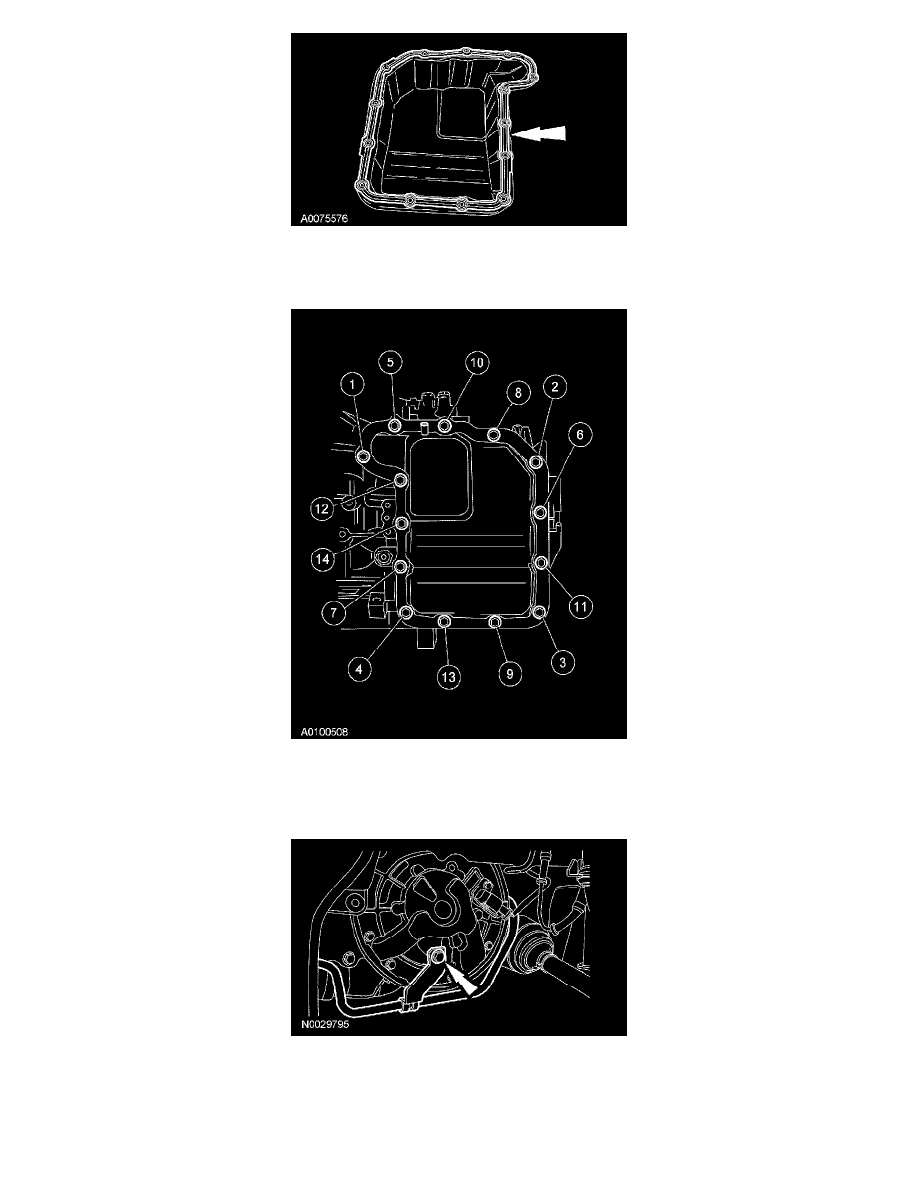

2. NOTE: Install studs in locations 3 and 11.
Install the main control cover.
^
Tighten to 13 Nm (10 ft. lbs.), in sequence shown.
3. Position the transmission fluid cooler tube in place and install the bolt.
^
Tighten to 25 Nm (18 ft. lbs.).
