Mariner 2WD V6-3.0L VIN 1 (2006)
Valve Body: Service and Repair

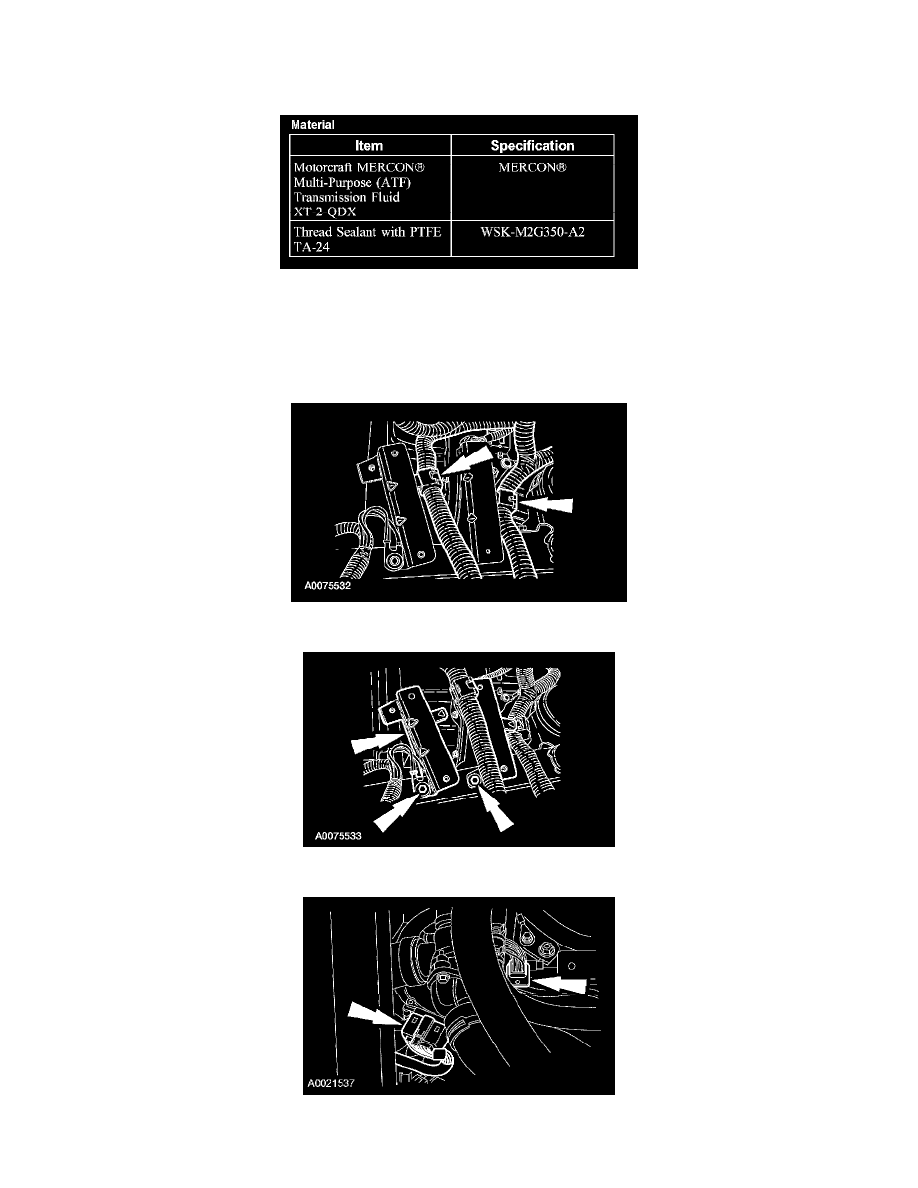

Main Control Valve Body
Main Control Valve Body
Material
Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the engine coolant.
3. Remove the battery and tray.
4. Disconnect the wiring harness from the battery tray bracket.
5. Remove the battery tray bracket.
6. Disconnect the transaxle wiring harness electrical connector and the transmission range (TR) sensor electrical connector.
