Mariner 2WD V6-3.0L VIN 1 (2006)
Seals and Gaskets: Service and Repair
Halfshaft Oil Seal

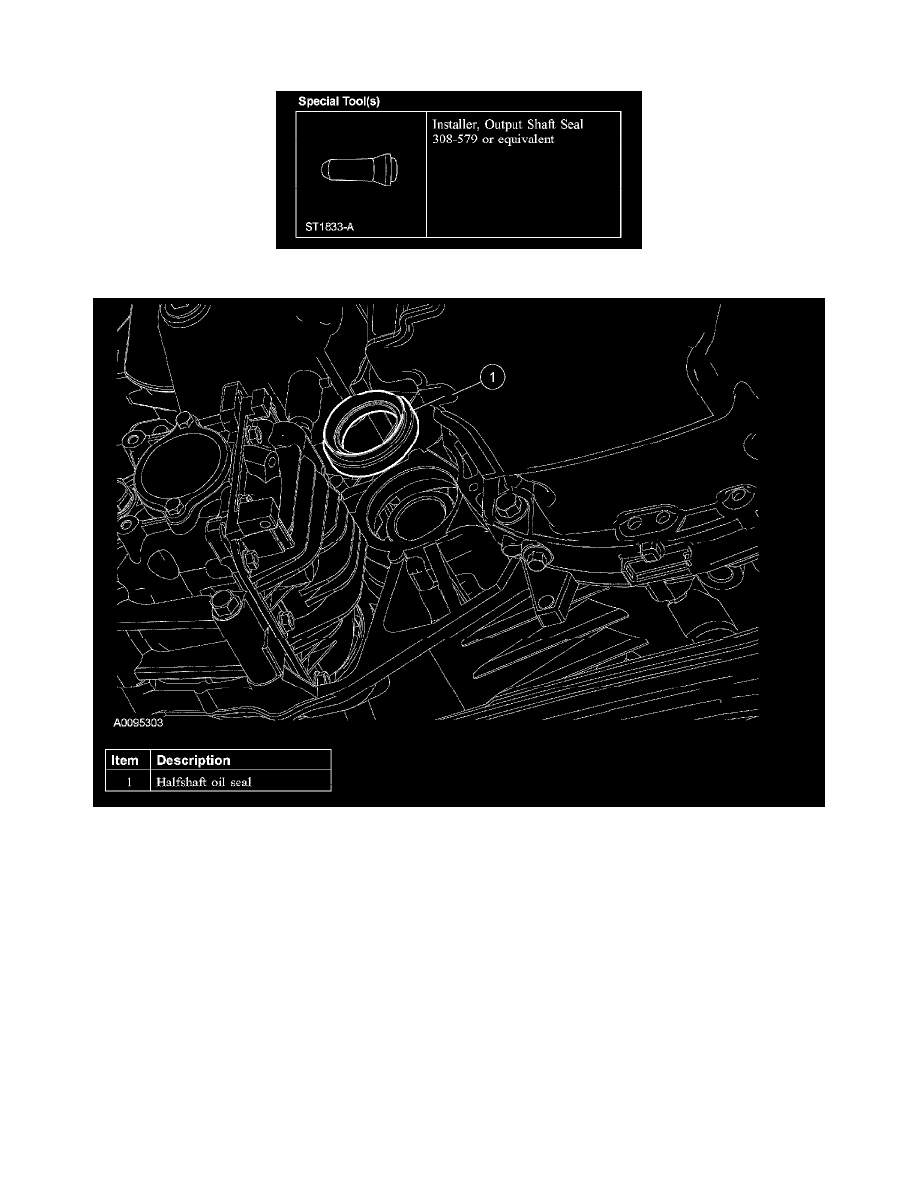

Special Tool(s)
Removal and Installation
CAUTION: New halfshaft oil seals should be installed anytime the halfshafts are removed. Failure to install new halfshafts seals may result in
transmission oil leak(s).
NOTE: RH intermediate shaft oil seal shown, LH halfshaft oil seal similar.
1. Remove the RH intermediate shaft or LH halfshaft.
2. Remove the RH intermediate shaft oil seal or the LH halfshaft oil seal.
Installation
