Flywheel: Specifications (page 6 of 6)
- Make
- Mercury
- Model
- Mariner 4WD
- Engine
- L4-2.5L
- Year
- 2010
- Section
- Flywheel

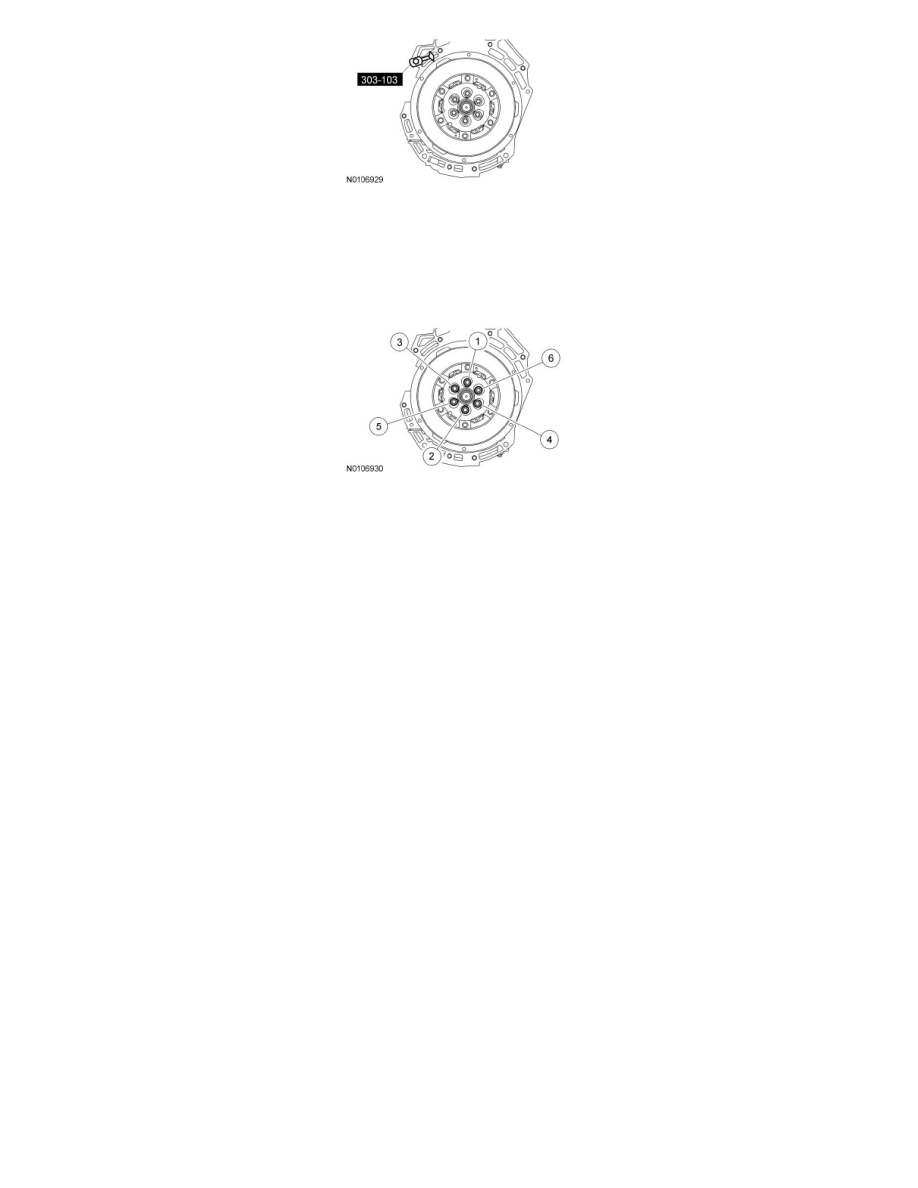

30. Tighten the dual mass flywheel retaining bolts in the sequence shown in 3 stages.
-
Stage 1: Tighten to 50 Nm (37 lb-ft).
-
Stage 2: Tighten to 80 Nm (59 lb-ft).
-
Stage 3: Tighten to 112 Nm (83 lb-ft).
31. NOTE: A new clutch disc should be installed due to possible hub spline wear or friction material wear.
Install the clutch disc and pressure plate.
32. Install the transaxle. For additional information, refer to Manual Transmission/Transaxle.
