Mariner 4WD L4-2.5L Hybrid (2009)
Hydraulic Control Assembly - Antilock Brakes: Service and Repair

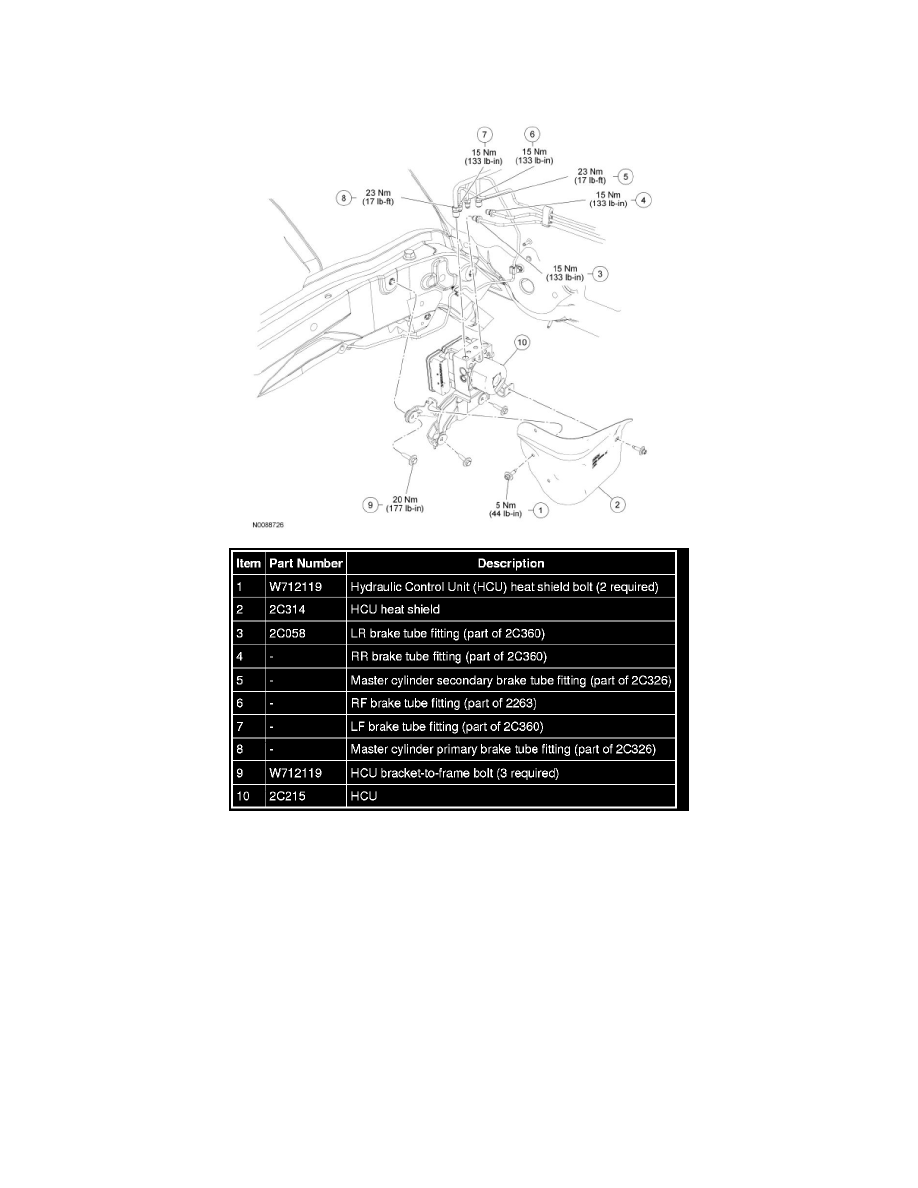

Hydraulic Control Unit (HCU) - Hybrid
Removal and Installation
WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that
has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of
serious personal injury.
WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice.
For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result
in serious personal injury.
NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or
plastic surface, immediately wash the surface with water.
1. Remove the Hydraulic Control Unit (HCU) heat shield.
-
Remove the 2 heat shield bolts.
-
To install, tighten to 5 Nm (44 lb-in).
2. Disconnect the electrical connector by rotating the protective cover.
