Mariner 4WD L4-2.5L Hybrid (2009)
Oil Filter Adapter: Service and Repair
Oil Filter Adapter
Oil Filter Adapter
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

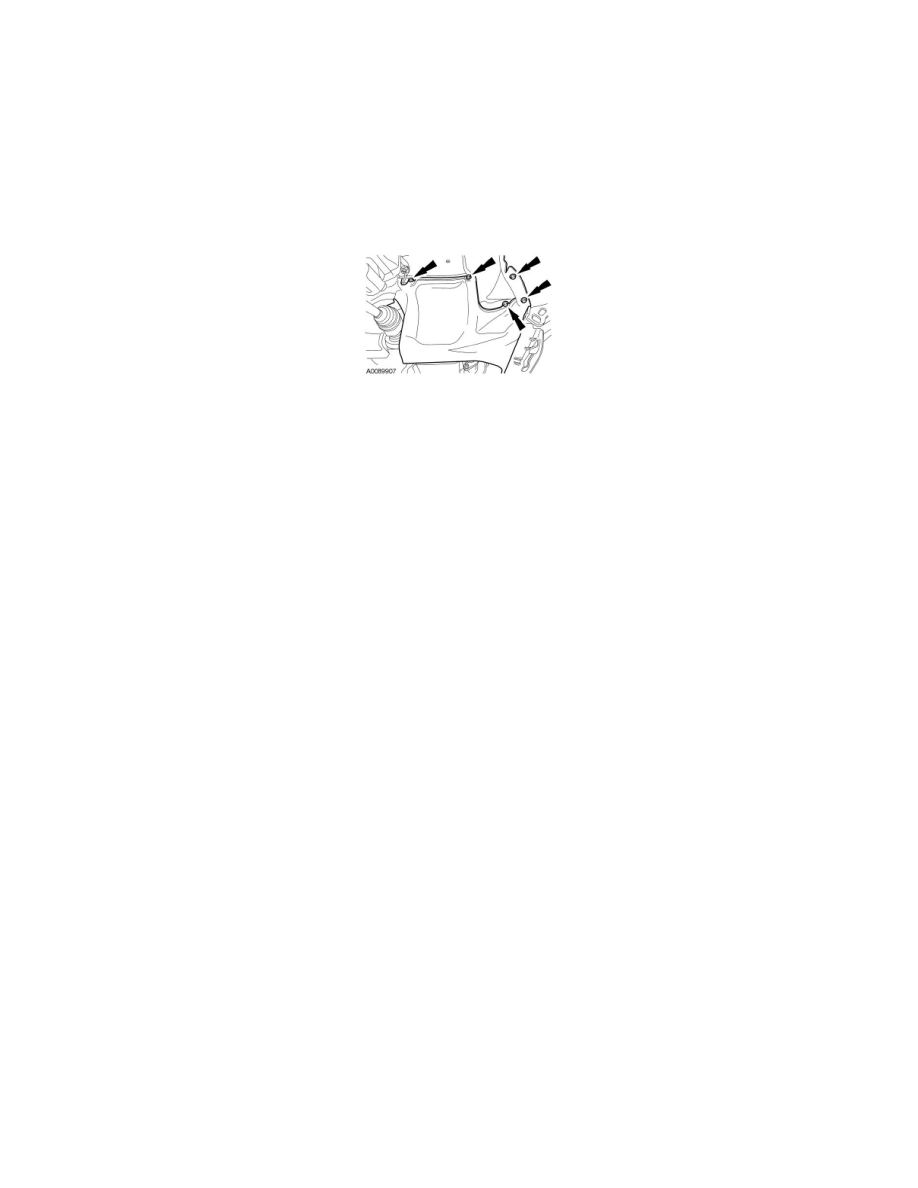

2. Remove the pin-type retainer (not shown), 5 bolts and the RH splash shield.
-
To install, tighten to 9 Nm (80 lb-in).
3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
4. If equipped, remove the oil filter element. For additional information, refer to Oil Filter Element See: Oil Filter/Service and Repair/Oil Filter
Element.
5. If equipped, remove the spin-on oil filter.
-
To install, lubricate the spin-on oil filter gasket with clean engine oil and tighten the oil filter three-fourths turn after the oil filter gasket makes
contact with the oil filter adapter.
6. NOTE: Discard the gasket.
Remove the 4 bolts and the oil filter adapter.
-
To install, tighten to 25 Nm (18 lb-ft).
7. To install, reverse the removal procedure.
