Mariner 4WD L4-2.5L Hybrid (2009)
Hose/Line HVAC: Service and Repair

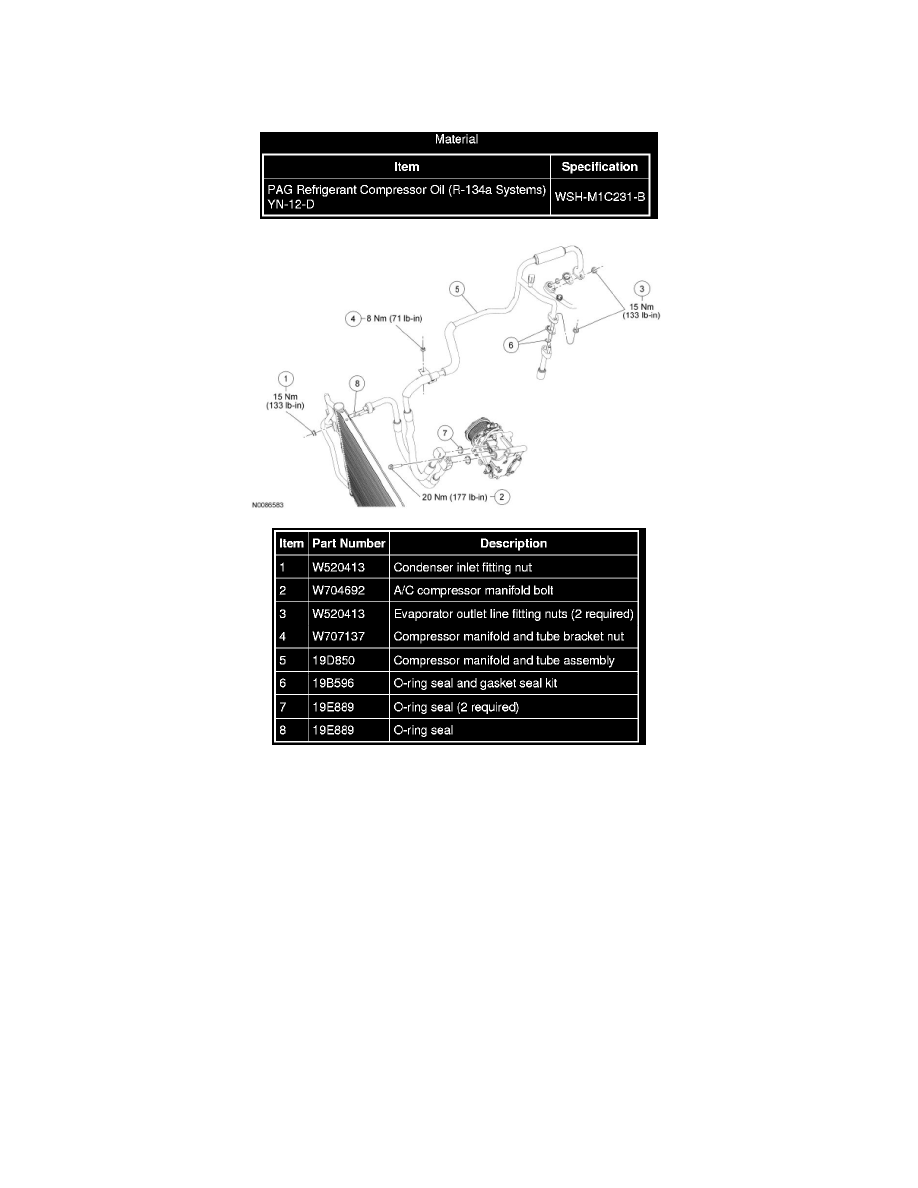

Compressor Manifold and Tube Assembly
Compressor Manifold and Tube Assembly - Hybrid
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Recover the refrigerant.
3. Remove the DC/DC converter. For additional information, refer to Hybrid Drive Systems.
4. Remove the front bumper cover.
5. Remove the condenser inlet fitting nut and disconnect the fitting.
-
Discard the O-ring seal.
-
To install, tighten to 15 Nm (133 lb-in).
6. Remove the A/C compressor manifold bolt and disconnect the compressor manifold and tube from the A/C compressor.
-
Discard the O-ring seals.
-
To install, tighten to 20 Nm (177 lb-in).
7. Remove the 2 evaporator outlet line fitting nuts.
-
Discard the O-ring seals and gasket seals.
