Mariner 4WD L4-2.5L Hybrid (2009)
Battery, Hybrid Drive: Service and Repair

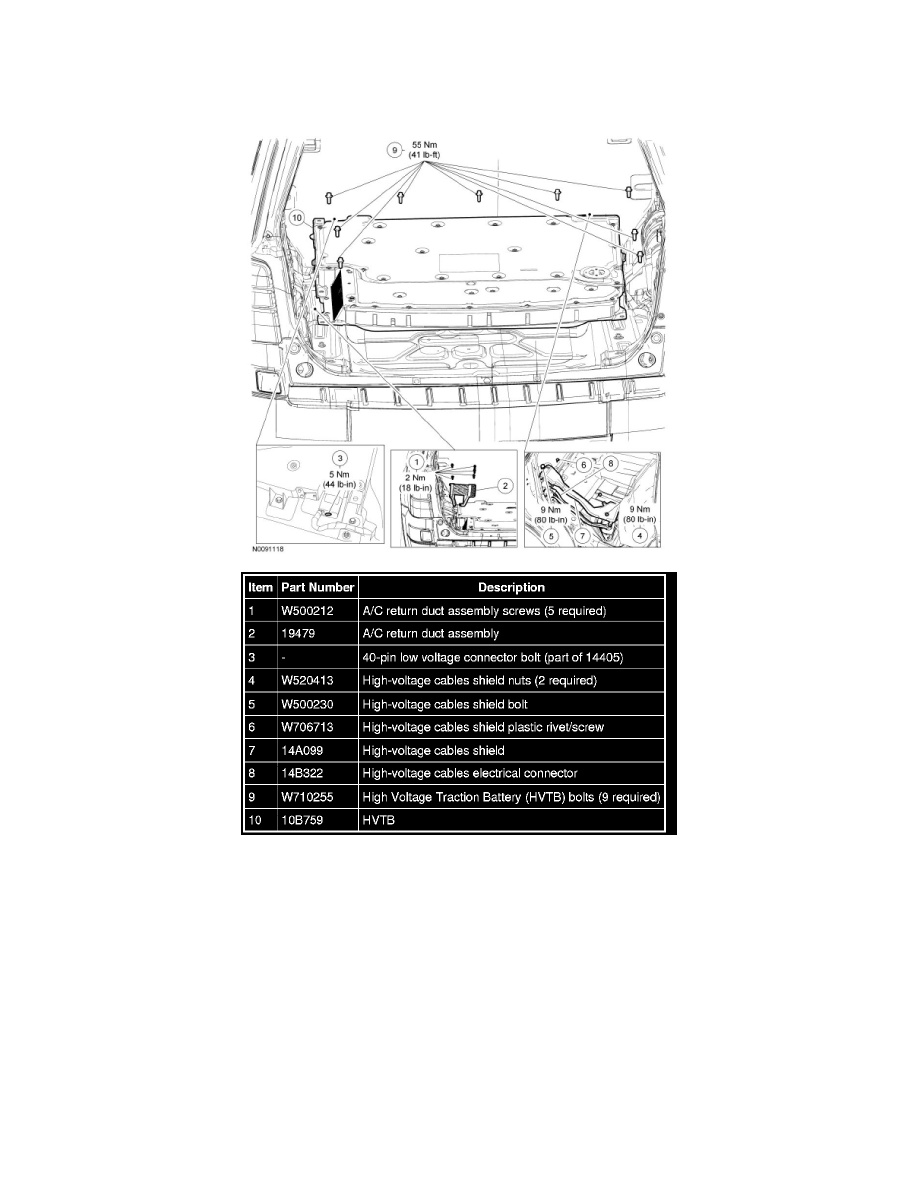

High-Voltage Traction Battery
High-Voltage Traction Battery
Removal and Installation
WARNING: When servicing the high-voltage system, establish a buffer zone per the specified procedure. Failure to follow this instruction may
result in serious personal injury or death.
WARNING: Depower the high-voltage traction battery (HVTB) before carrying out any removal or installation procedures affecting the
high-voltage battery system. Failure to follow this instruction may result in serious personal injury or death.
WARNING: Wear high-voltage insulated safety gloves and a face shield when working with high-voltage batteries or cables. The high-voltage
insulated safety gloves should be of the appropriate safety and protection rating. Inspect the gloves before use and always wear them with the
leather outer glove. Any hole in the rubber insulating glove is a potential entry point for high-voltage. Failure to follow these instructions may
result in serious personal injury or death.
WARNING: Turn OFF the ignition switch for a minimum of 5 minutes before removing high-voltage cables. High-voltage cables and wiring
are orange in color. The nominal high-voltage traction battery voltage (HVTB) is 330 V DC. Failure to follow these instructions may result in
serious personal injury or death.
