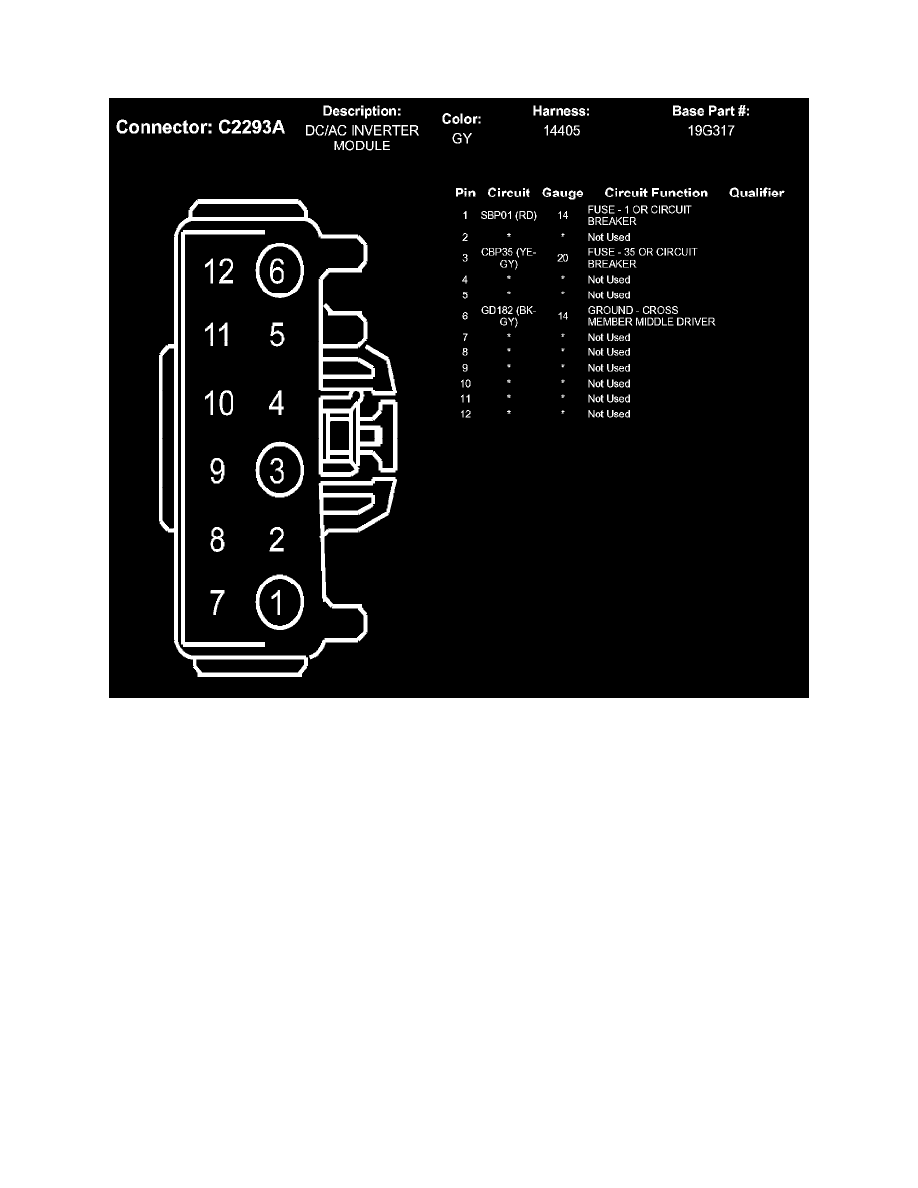

Voltage Converter Module: Diagrams
DC/AC Inverter Module

Hybrid Drive Systems
Relays and Modules - Hybrid Drive
Voltage Converter Module, Hybrid Drive / Component Information
Diagrams
DC/AC Inverter Module
