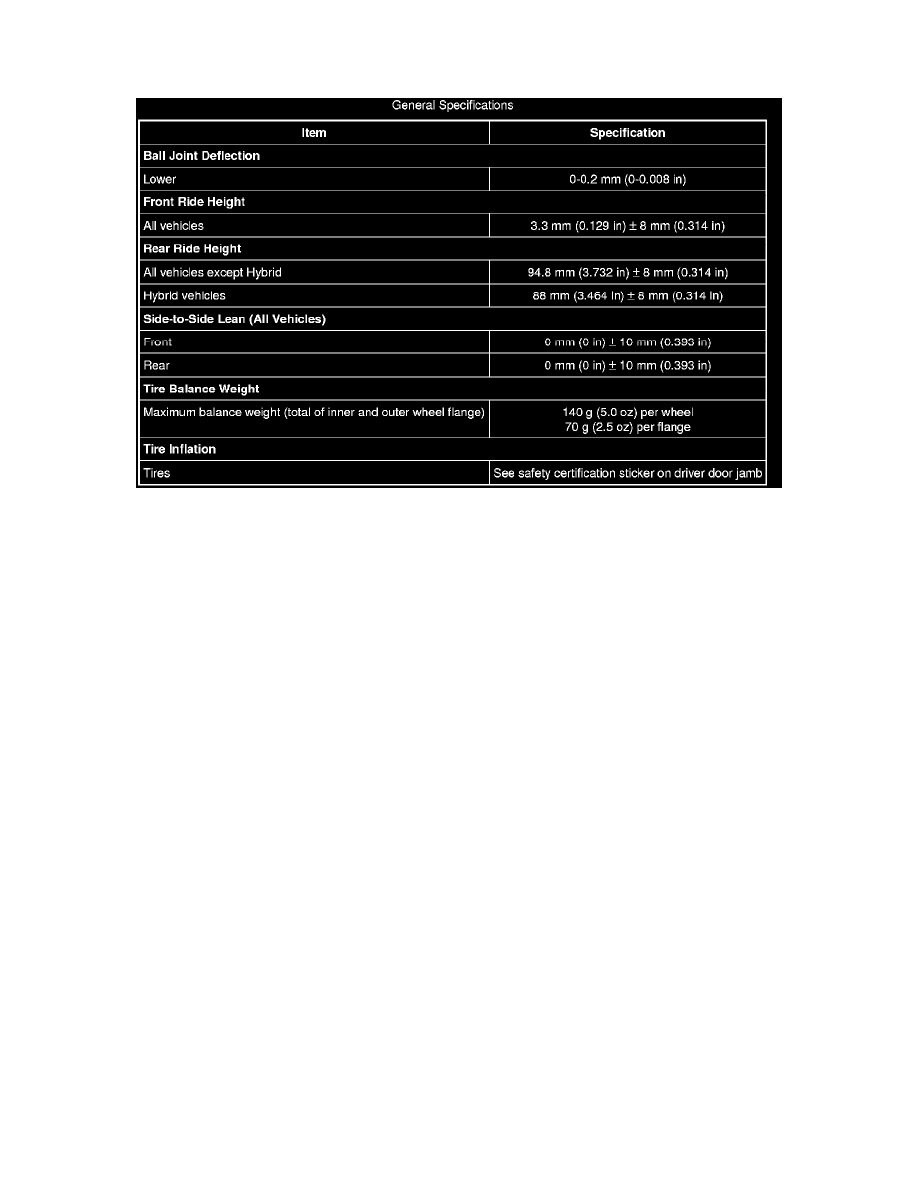

Alignment: Specifications
Ball Joint Deflection, Ride Height, Side-to-Side Lean, Tire Balance Weight, and Tire Inflation
