Milan AWD L4-2.3L (2008)

Page 1
background image

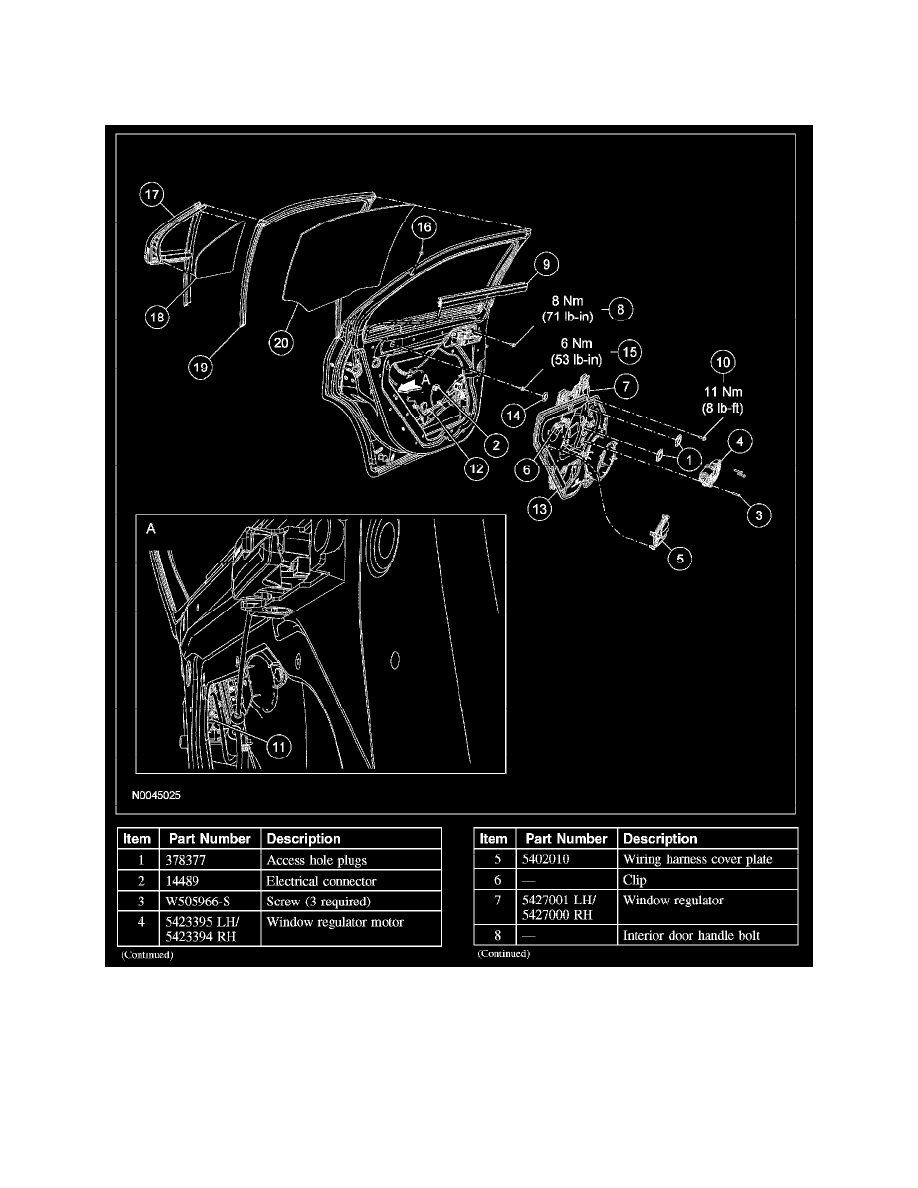

Rear Door Window Glass Weatherstrip: Service and Repair

DOOR GLASS RUN AND BRACKET - REAR

Exploded View

Part 1
