Milan AWD L4-2.3L (2008)
Engine, Cooling and Exhaust
Engine
Drive Belts, Mounts, Brackets and Accessories / Drive Belt / Diagrams / Exploded Views
Page 1733
Page 1

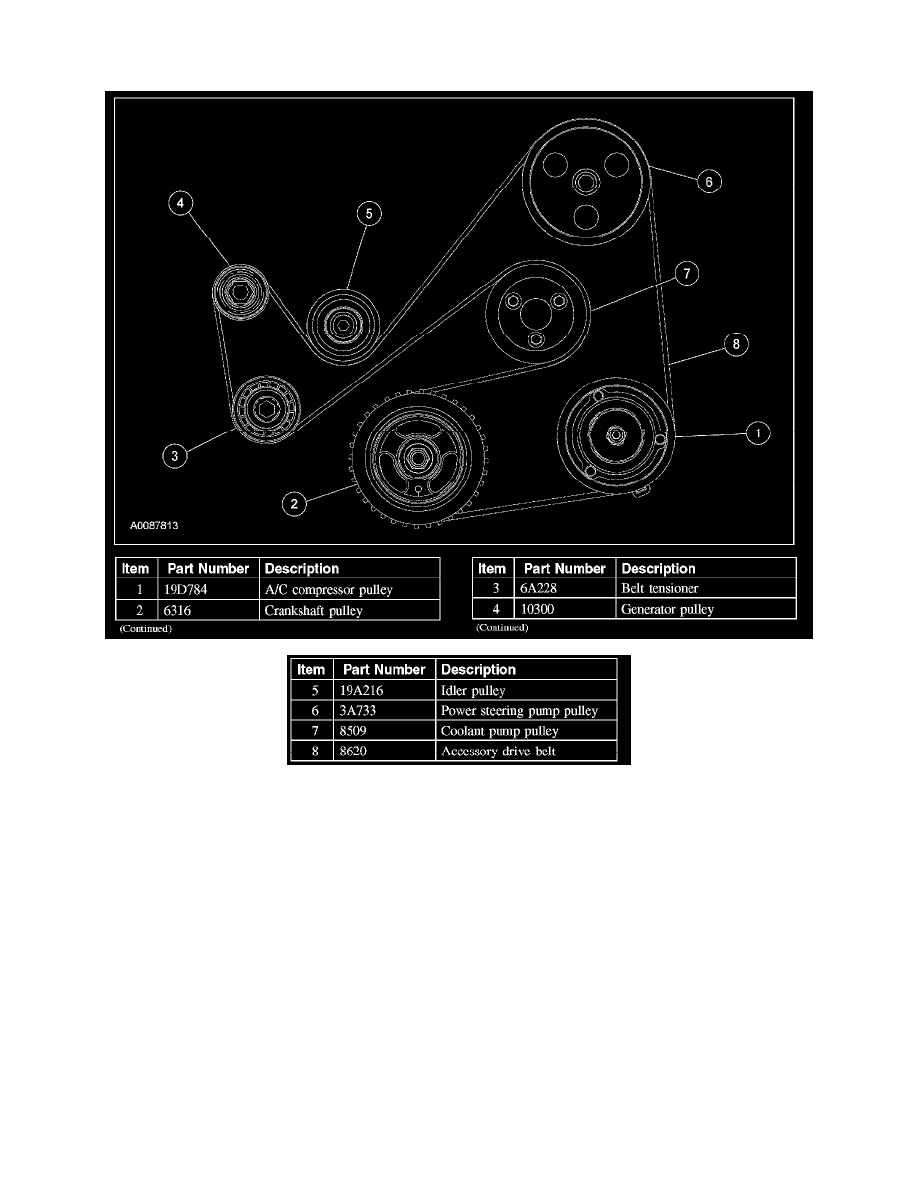

Drive Belt: Mechanical Diagrams
Drive Belt Routing
Engine, Cooling and Exhaust
Engine
Drive Belts, Mounts, Brackets and Accessories / Drive Belt / Diagrams / Exploded Views
Page 1733
