Milan AWD L4-2.3L (2008)
Control Assembly: Service and Repair

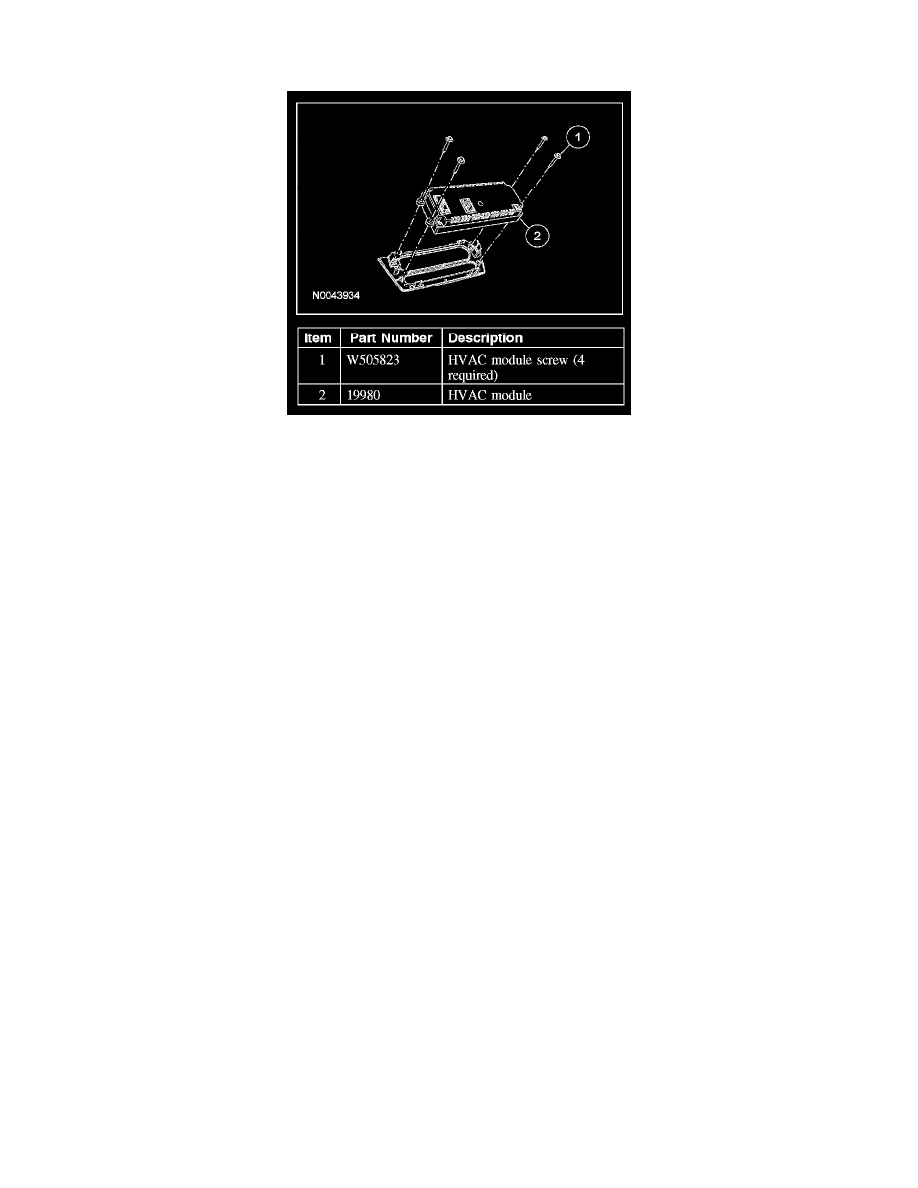

HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE
Removal and Installation
1. Remove the instrument panel lower center finish panel.
2. Remove the 4 HVAC module screws.
3. Remove the HVAC module.
4. To install, reverse the removal procedure.
