Milan AWD L4-2.3L (2008)
Removal and Installation
WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle
the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.
NOTE:
-
The headlamp bulb should not be removed from the headlamp until just before a new bulb is installed. Removing the bulb for an extended period
of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn
on the headlamps with the bulb removed from the headlamp.
-
Make sure the headlamp switch and the ignition switch are in the OFF position.

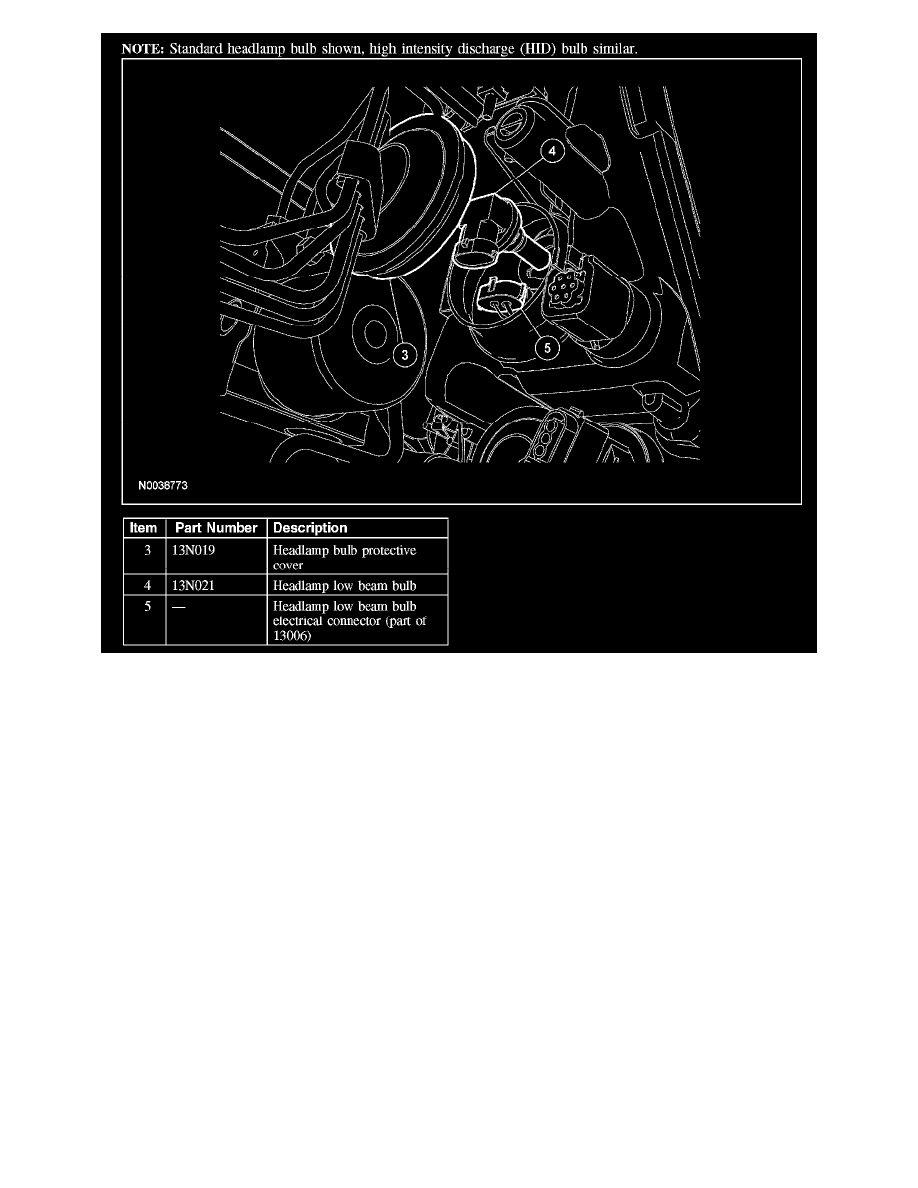

Low beam bulb
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the screw and the fender splash shield access cover.
High beam bulb, vehicles with ABS
3. NOTE: For vehicles with a 3.5L engine, remove the engine appearance cover.
Remove the bolt and the windshield washer reservoir filler tube.
