Milan AWD L4-2.3L (2008)
Tail Lamp: Service and Repair
REAR LAMP ASSEMBLY
Removal and Installation

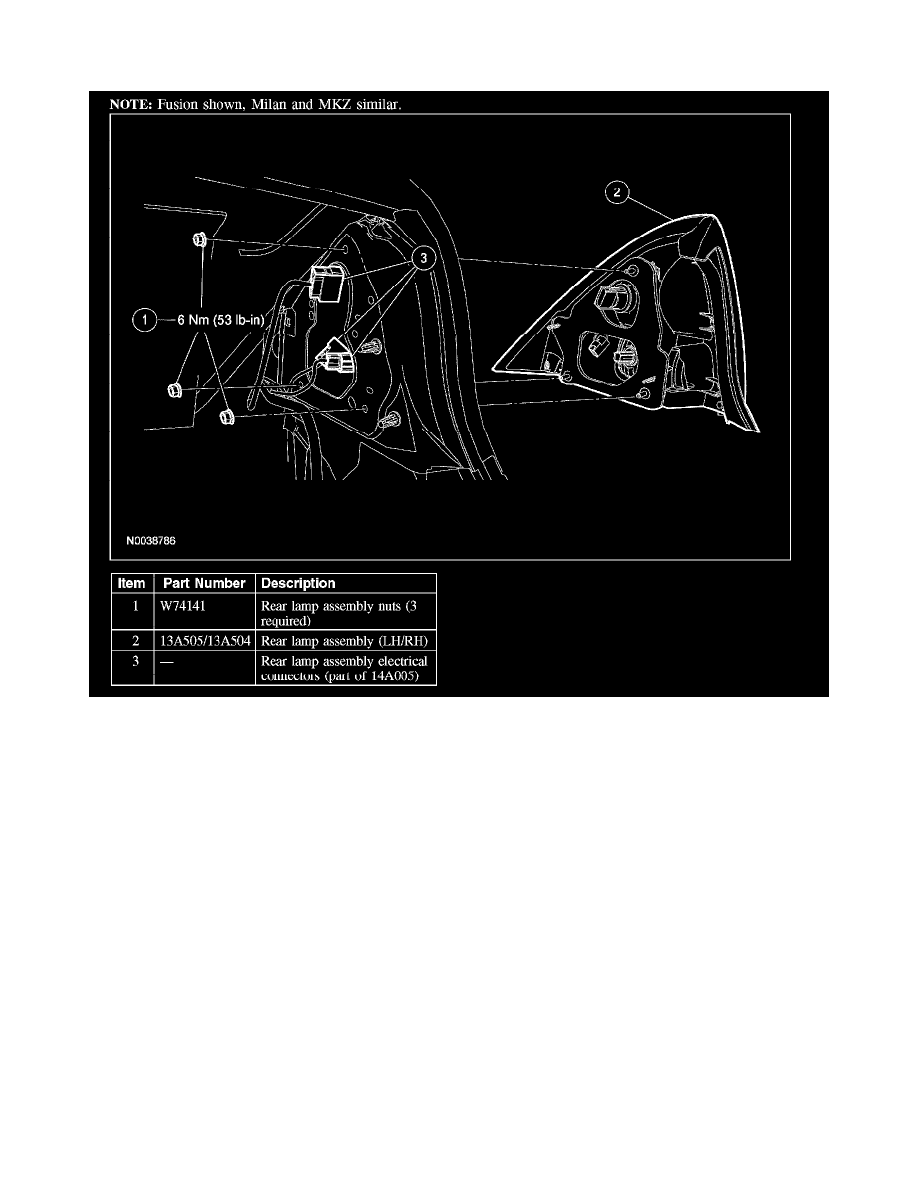

1. Remove the pin-type retainer and position the luggage compartment trim panel aside.
2. Remove the 3 nuts and the rear lamp assembly.
-
Disconnect the electrical connectors.
-
To install, tighten the nuts to 6 Nm (53 lb-in).
3. To install, reverse the removal procedure.
