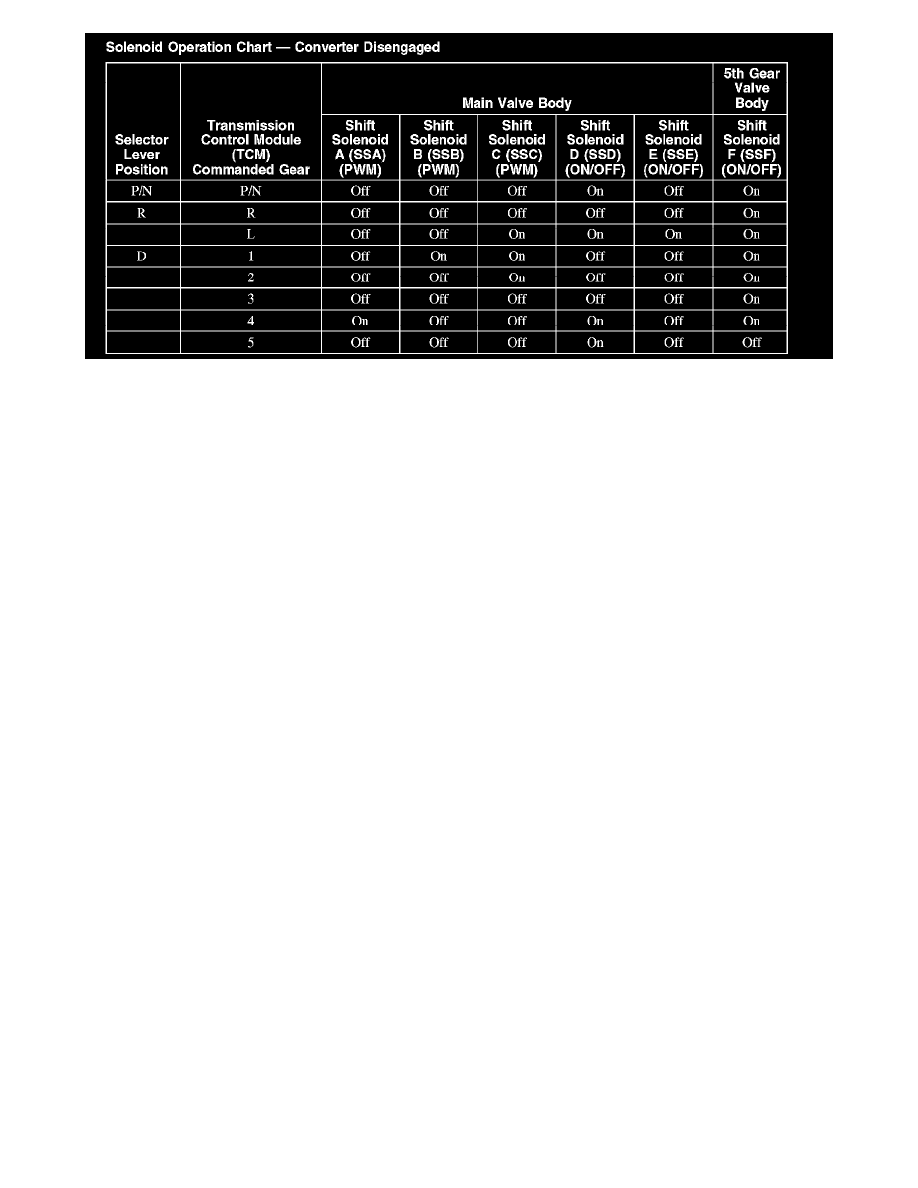

Solenoid Operation Chart - Converter Disengaged

Transmission and Drivetrain
Automatic Transmission/Transaxle / Actuators and Solenoids - A/T / Pressure Regulating Solenoid, A/T / Testing and Inspection / Pinpoint Tests - Non OSC Equipped Vehicle
Page 3732
