Milan AWD L4-2.3L (2008)

Page 2
background image

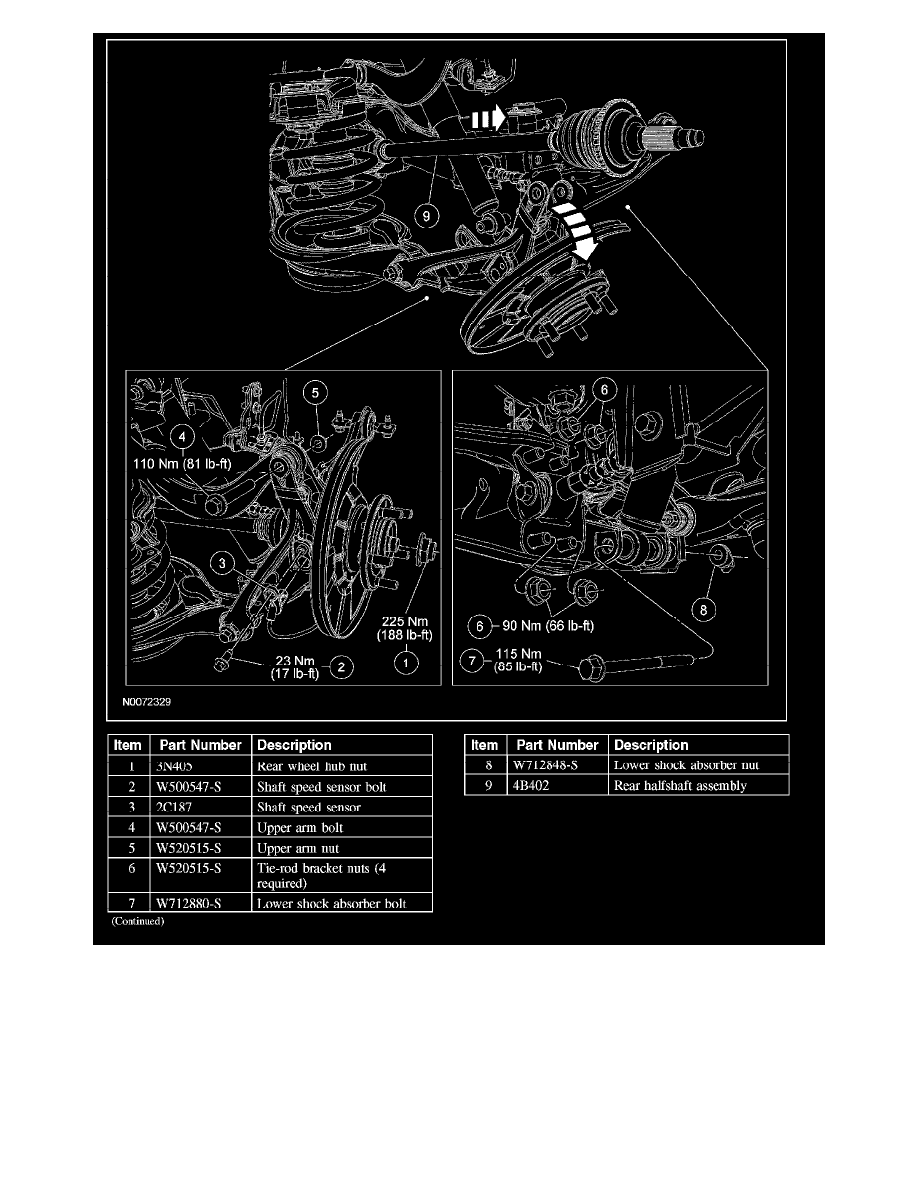

Removal

1. Remove the tire and wheel.
2. Remove and discard the rear wheel hub nut.
3. Remove the bolt and position aside the shaft speed sensor.
