Milan AWD L4-2.3L (2008)
Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal (Part 2)
Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the clutch.
3. Remove the 6 bolts and the flywheel.
Installation
1. NOTE: Special bolts are used for installation. Do not use standard bolts.

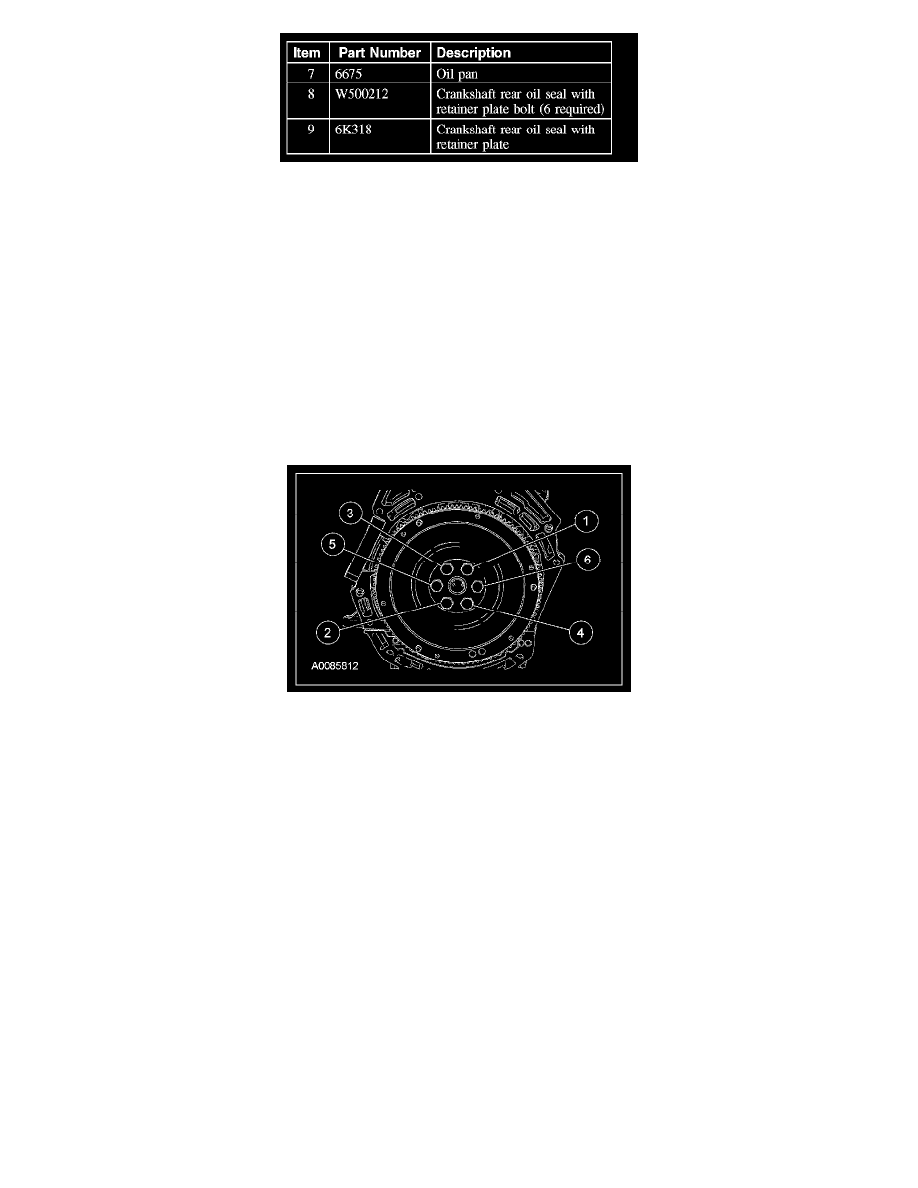

Install the flywheel and tighten the bolts in the sequence shown in 3 stages.
^
Stage 1: Tighten to 50 Nm (37 lb-ft).
^
Stage 2: Tighten to 80 Nm (59 lb-ft).
^
Stage 3: Tighten to 112 Nm (83 lb-ft).
2. Install the clutch and manual transaxle.
