Milan AWD L4-2.3L (2008)
Windshield Washer Pump: Service and Repair
WASHER PUMP

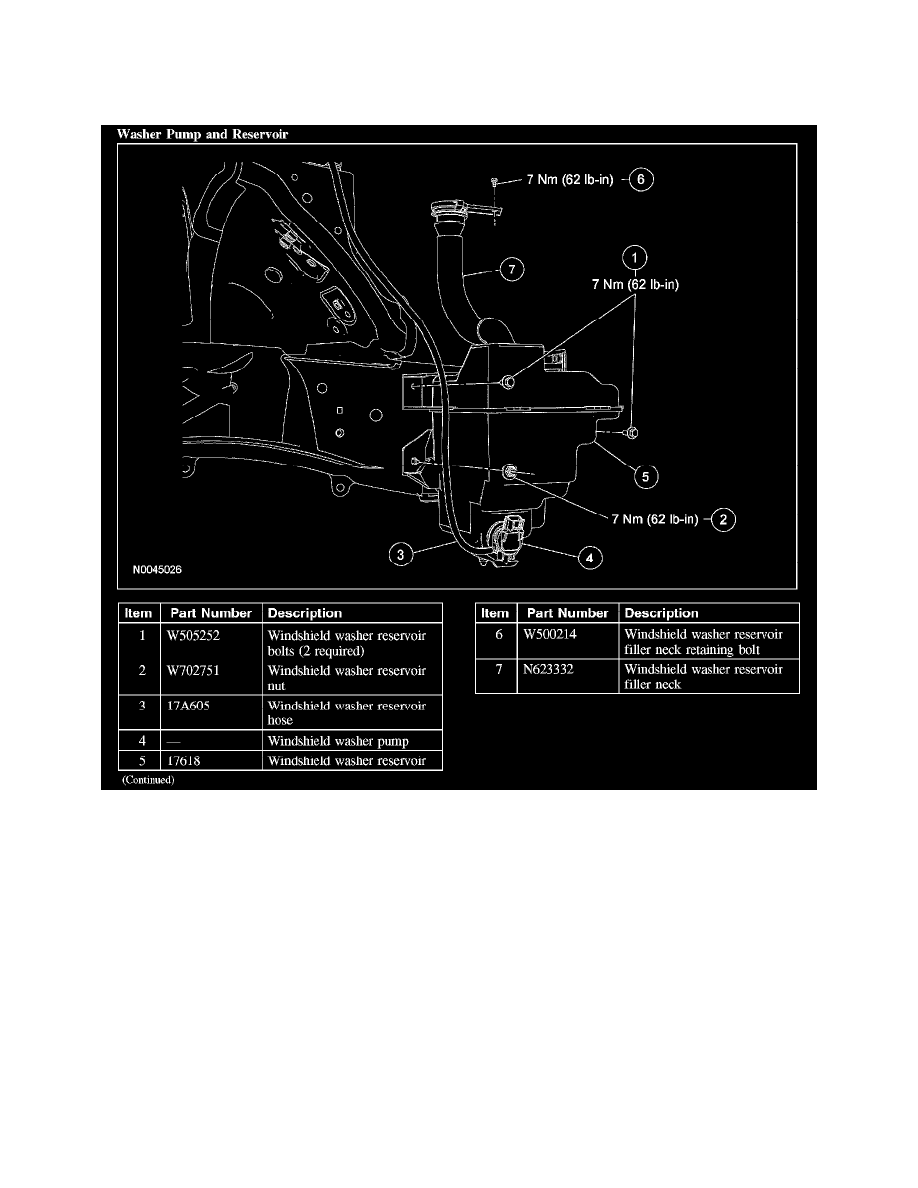

Exploded View
Washer Pump And Reservoir
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the RH front fender splash shield.
3. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical
advice. Failure to follow these instructions may result in serious personal injury.
CAUTION: When installing the windshield washer pump, be careful not to damage the rubber grommet.
NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before washer pump removal.
Remove the windshield washer pump.
1
Disconnect the electrical connector.
2
Disconnect the hoses.
3
Remove the windshield washer pump.
