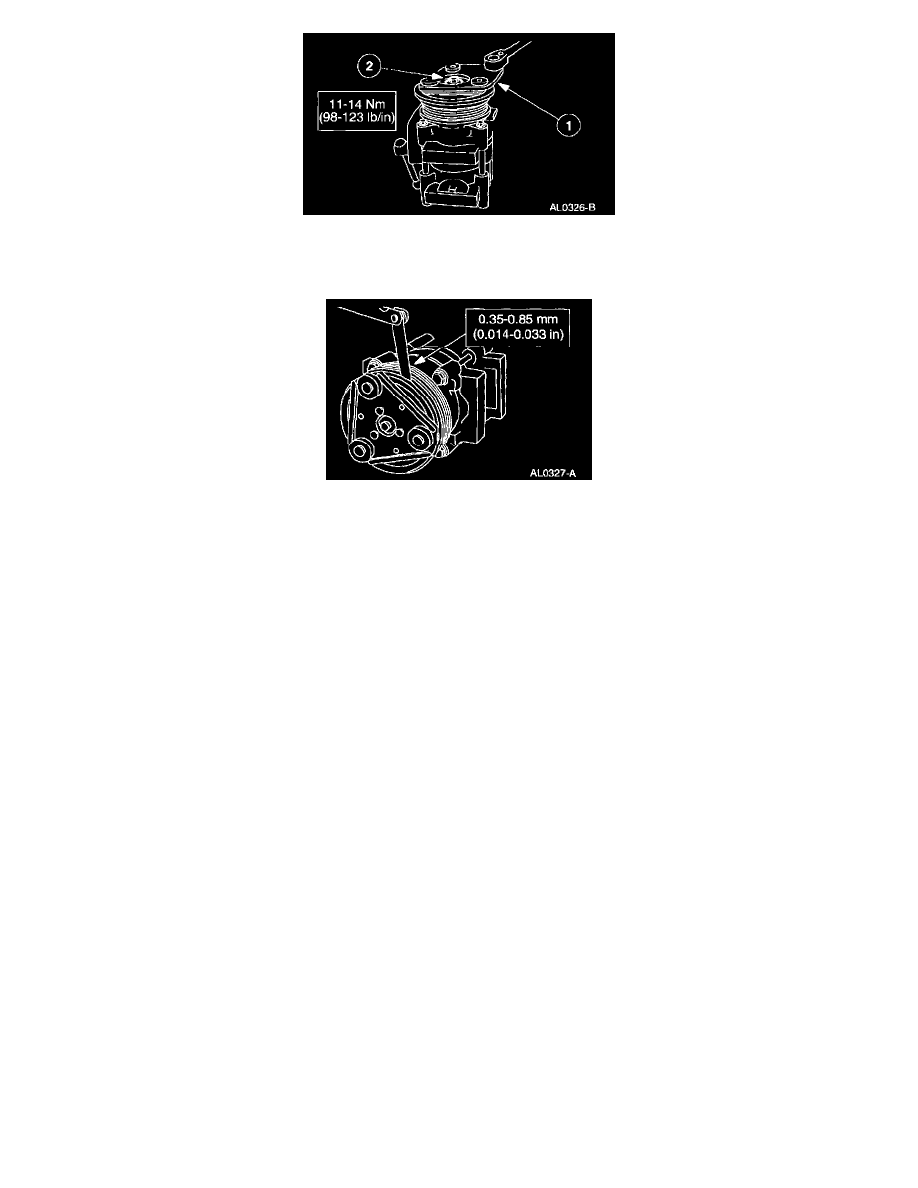

7. Install the bolt.

1

Hold the A/C clutch hub with the Compressor Clutch Holding Tool.

2

Tighten the bolt.

8. Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers.
9. Install the A/C compressor.
