Door Switch: Service and Repair

DOOR OPEN WARNING LAMP SWITCH

REMOVAL

1. Remove the door trim panel.
2. Remove the door latch.

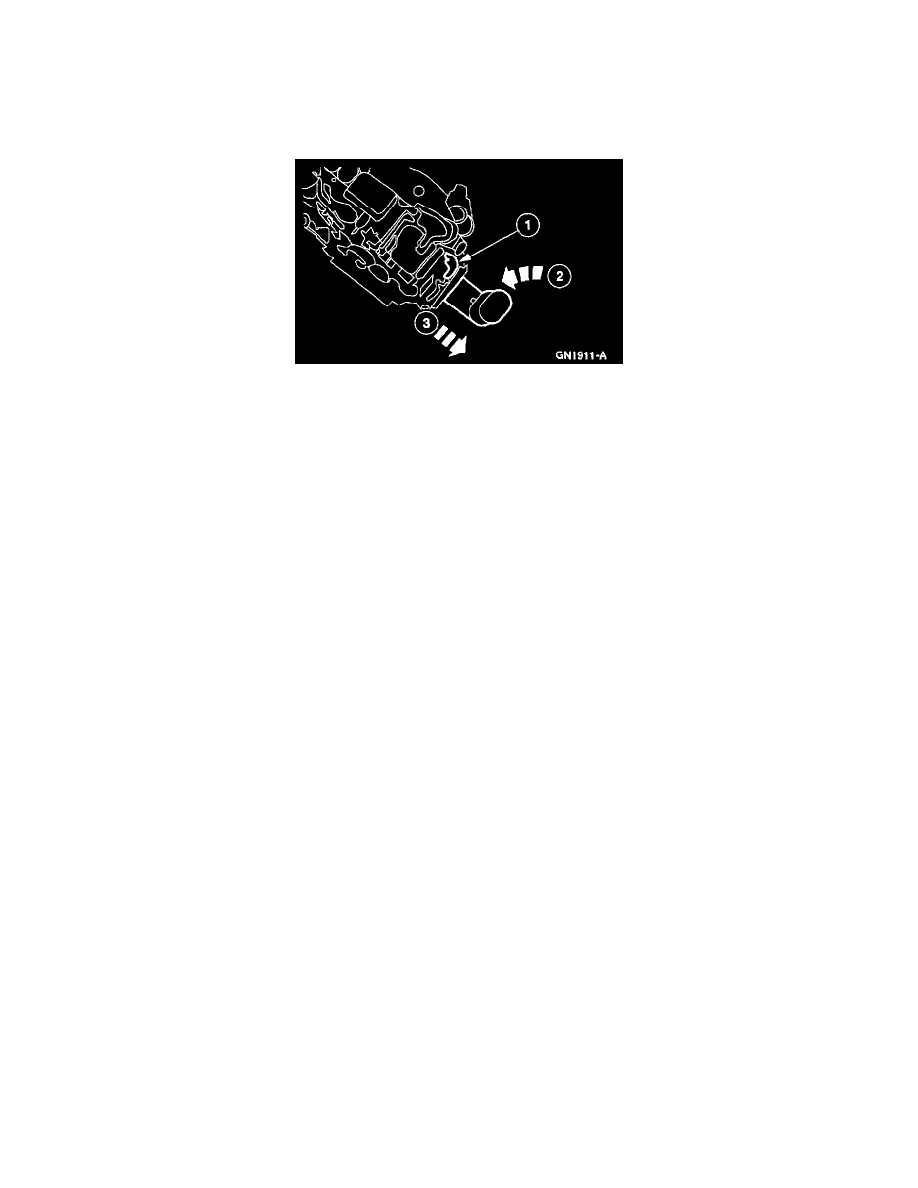

3. Remove the door opening warning lamp switch.

1. Lift the locking tab.
2. Rotate the door opening warning lamp switch counterclockwise.
3. Remove the door opening warning lamp switch.

INSTALLATION

1. To install, reverse the removal procedure.
