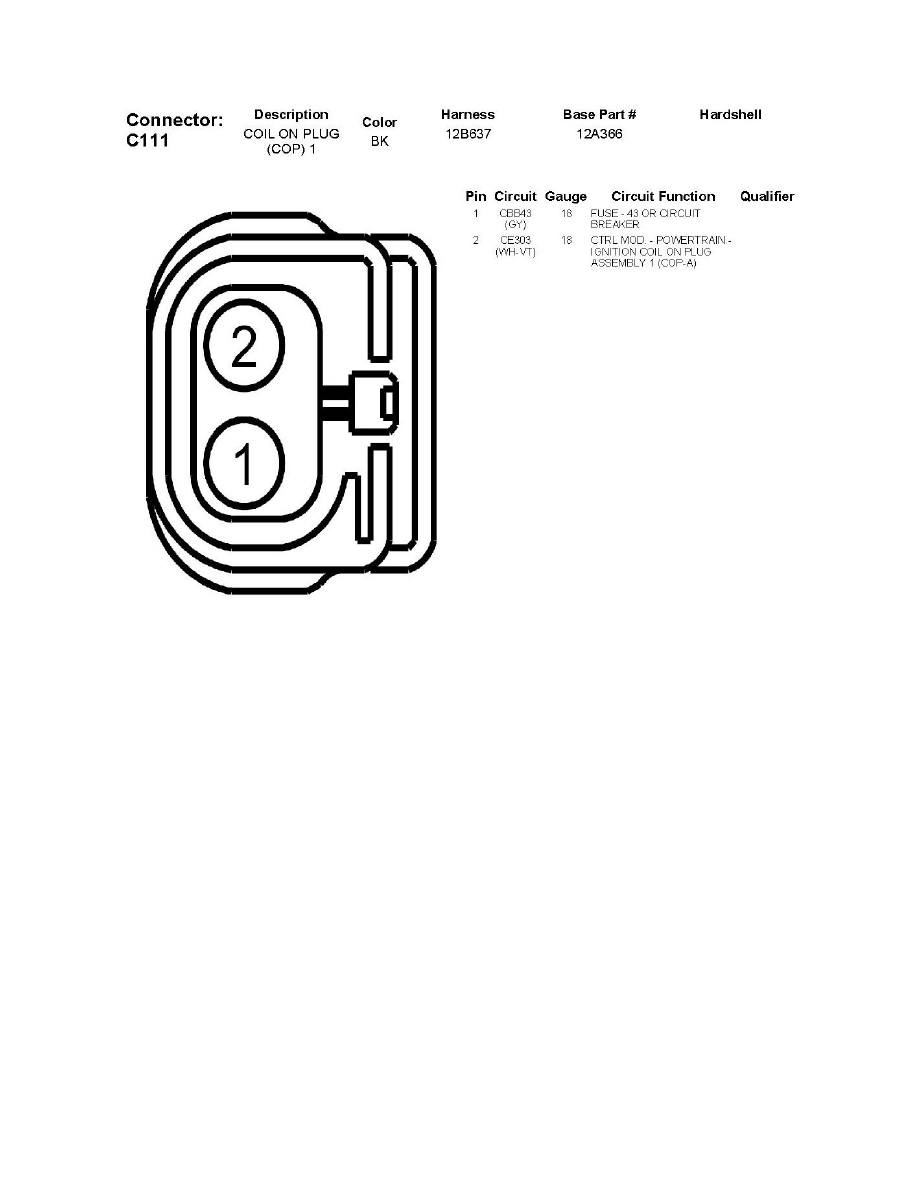

Ignition Coil: Diagrams
Coil On Plug (COP) 1

Powertrain Management
Ignition System
Ignition Coil
Component Information
Diagrams
Coil On Plug (COP) 1
