Mountaineer 2WD V8-4.6L VIN 8 (2006)
Housing Assembly HVAC: Service and Repair

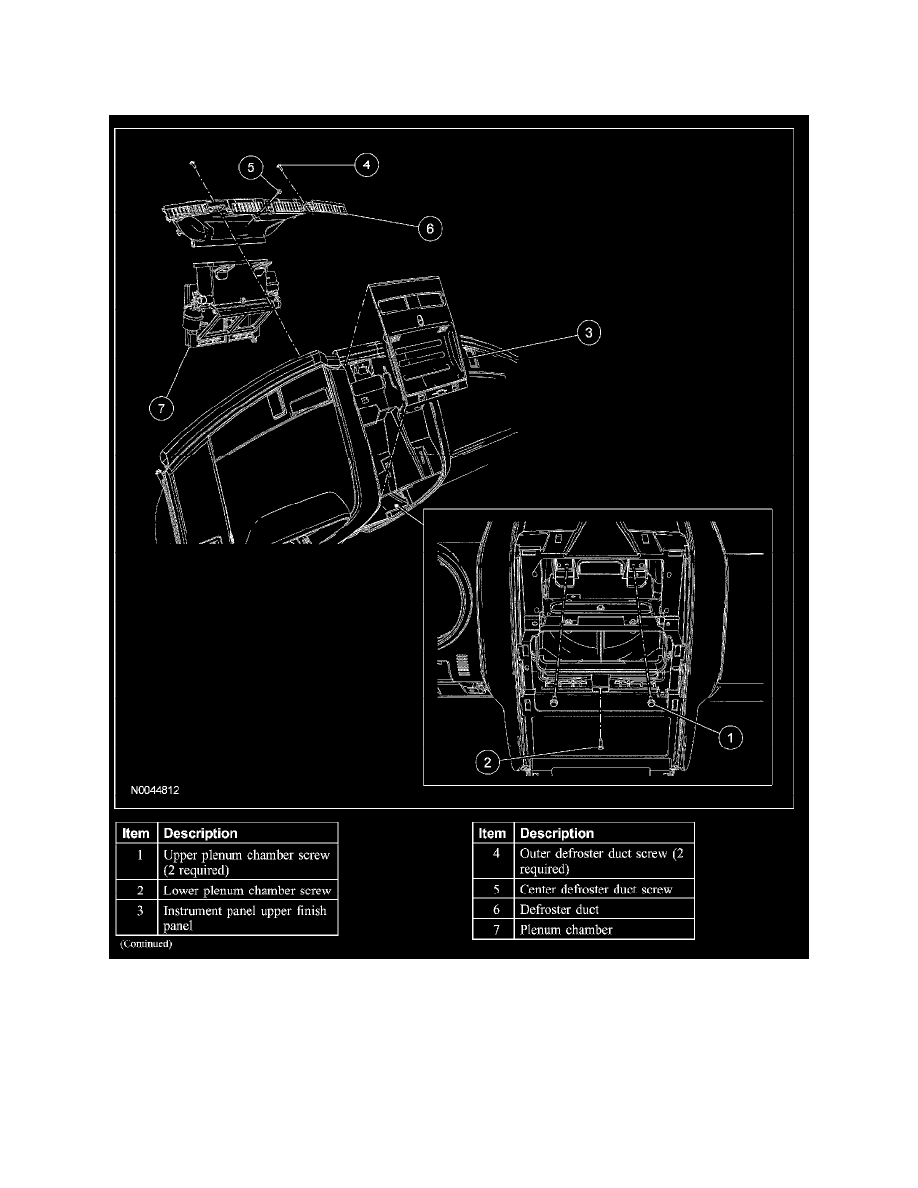

Plenum Chamber
PLENUM CHAMBER
Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Instrument
Panel, See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Instrument Panel
2. Remove the audio unit.
3. Remove the 3 plenum chamber screws.
4. Remove the instrument panel upper finish panel.
5. Remove the 3 defroster duct screws.
6. Remove the defroster duct.
7. Remove the plenum chamber.
