Mountaineer 2WD V8-4.6L VIN 8 (2006)
Fog/Driving Lamp Bulb: Service and Repair
FOG LAMP BULB
Removal and Installation
WARNING: The fog lamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped.
Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.
NOTE:
-
The fog lamp bulb should not be removed from the fog lamp assembly until just before a new bulb is installed. Removing the bulb for an extended
period of time may affect fog lamp bulb performance. Contaminants may enter the fog lamp assembly where they can settle on the lens and
reflector. Never turn on the fog lamps with the bulb removed from the fog lamp assembly.
-
Make sure the headlamp switch and ignition switch are in the OFF position.
1. With the vehicle in NEUTRAL, position it on a hoist.

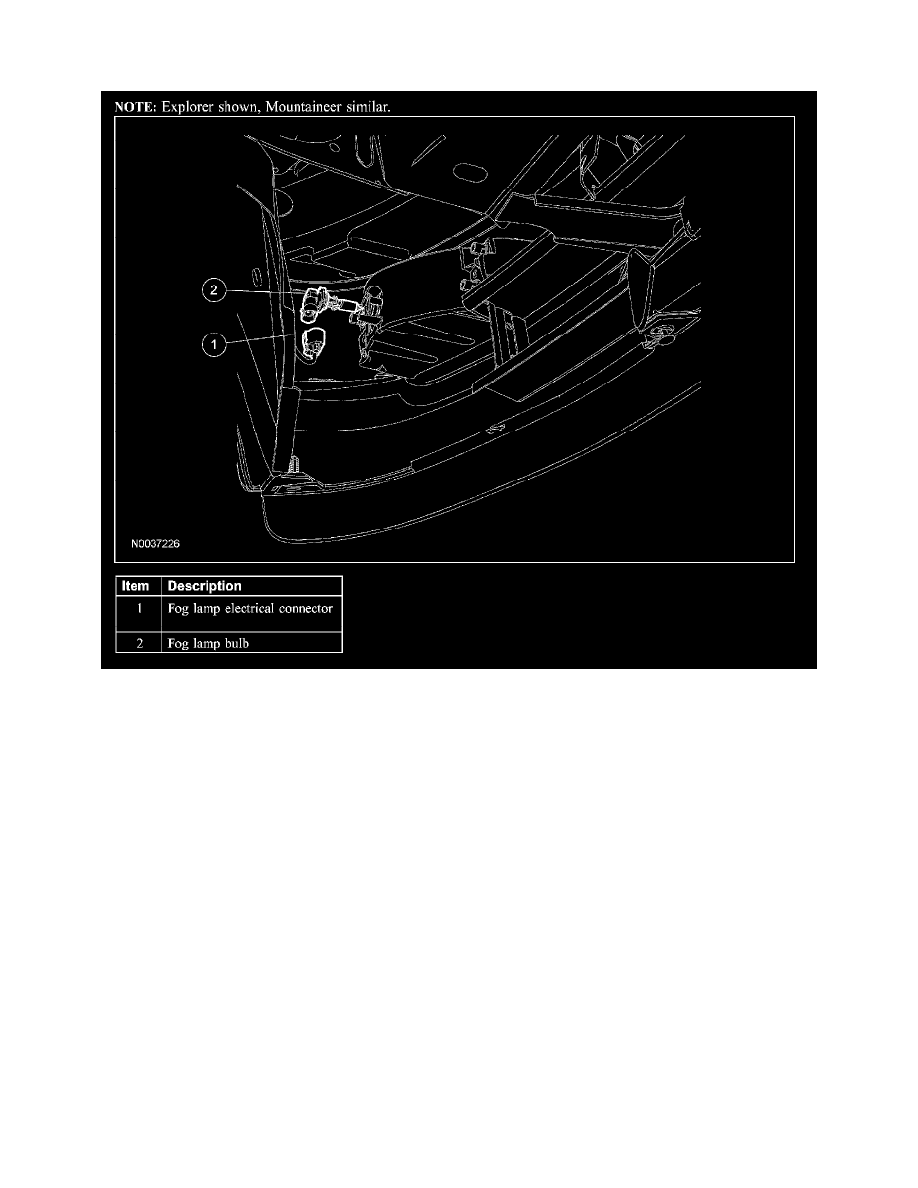

2. Disconnect the electrical connector and remove the fog lamp bulb.
3. To install, reverse the removal procedure.
