Sable V6-3.0L DOHC VIN S (2002)
Cellular Phone Transceiver: Service and Repair

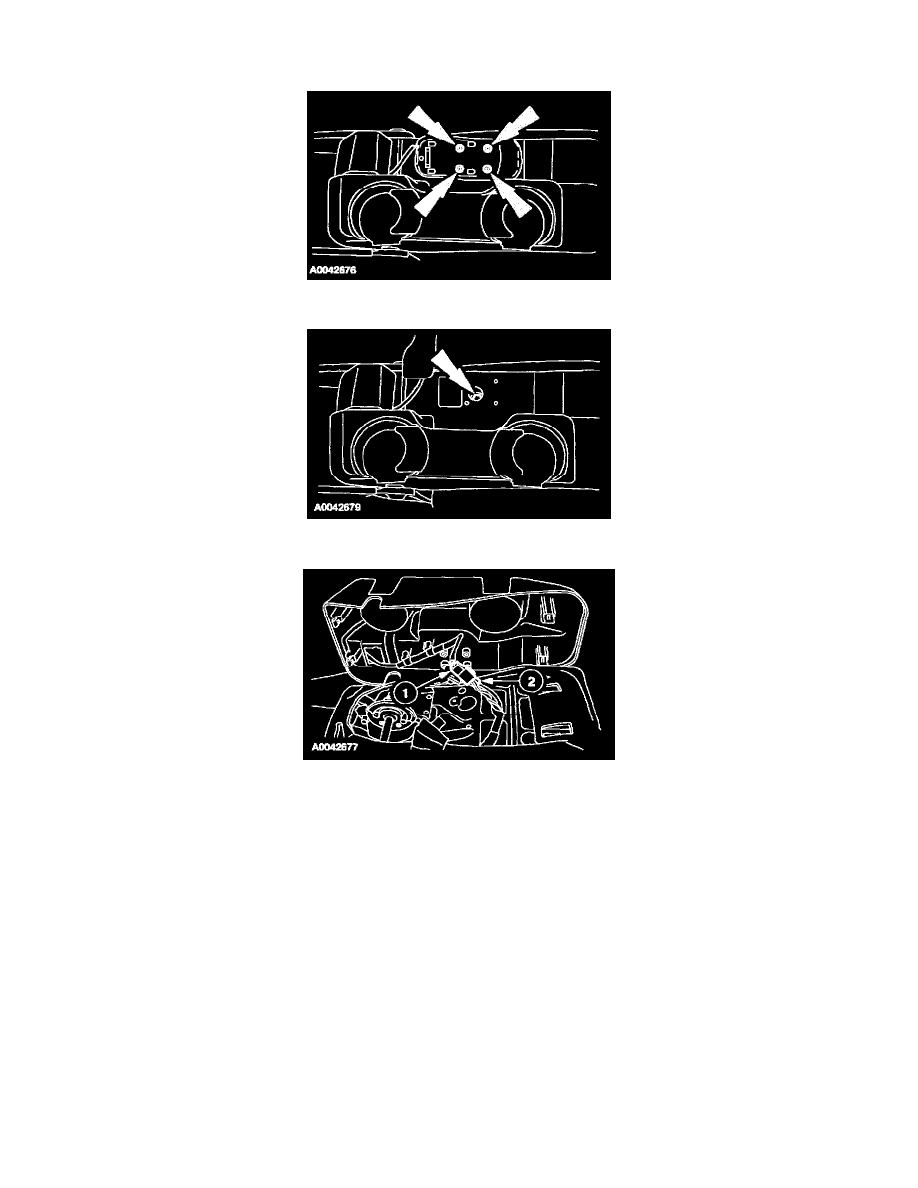

REMOVAL
1. Remove the screws from the docking station.
2. Remove the screw.
3. Release the four retaining clips by lifting up the upper console.
1
Disconnect the electrical connector.
2
Disconnect the antenna connector and remove the docking station.
INSTALLATION
1. To install, reverse the removal procedure.
