Sable V6-3.0L DOHC VIN S (2002)
Pedal Positioning Switch: Service and Repair
Brake Pedal Control Switch
Removal and Installation

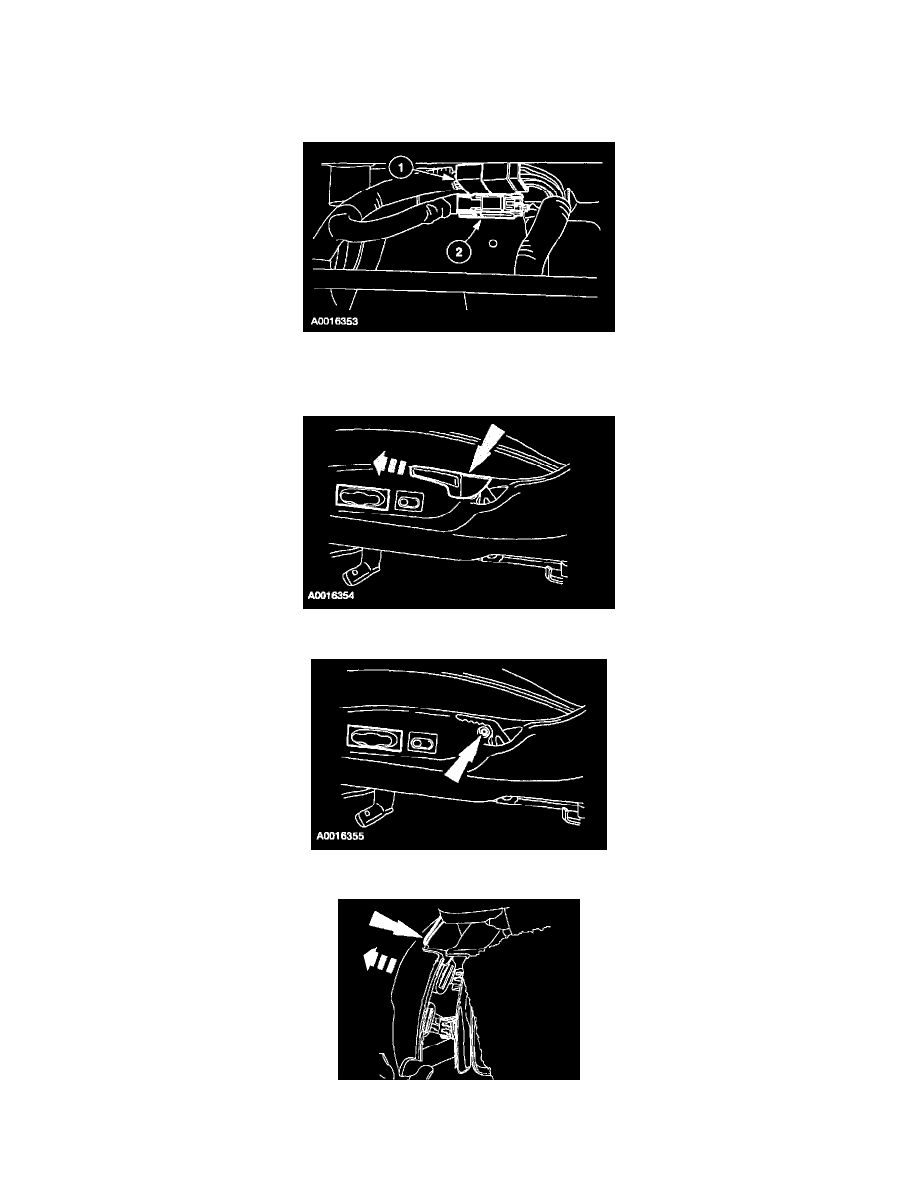

1. Remove the seat from the vehicle.
2. At the front underside of the seat cushion, disconnect the electrical connectors.
1
Power seat control.
2
Pedal position switch.
3. Pry off the recliner handle.
4. Remove the screw.
5. Carefully pull out the outer side shield releasing the two hidden clips (shown) to the inner side shield and the two hidden clips to the recliner
mechanism.
