Sable V6-3.0L DOHC VIN S (2002)
Rear Door Exterior Handle: Service and Repair
REMOVAL
All Vehicles
1. Remove the rear door trim panel.
2. Position the watershield aside.

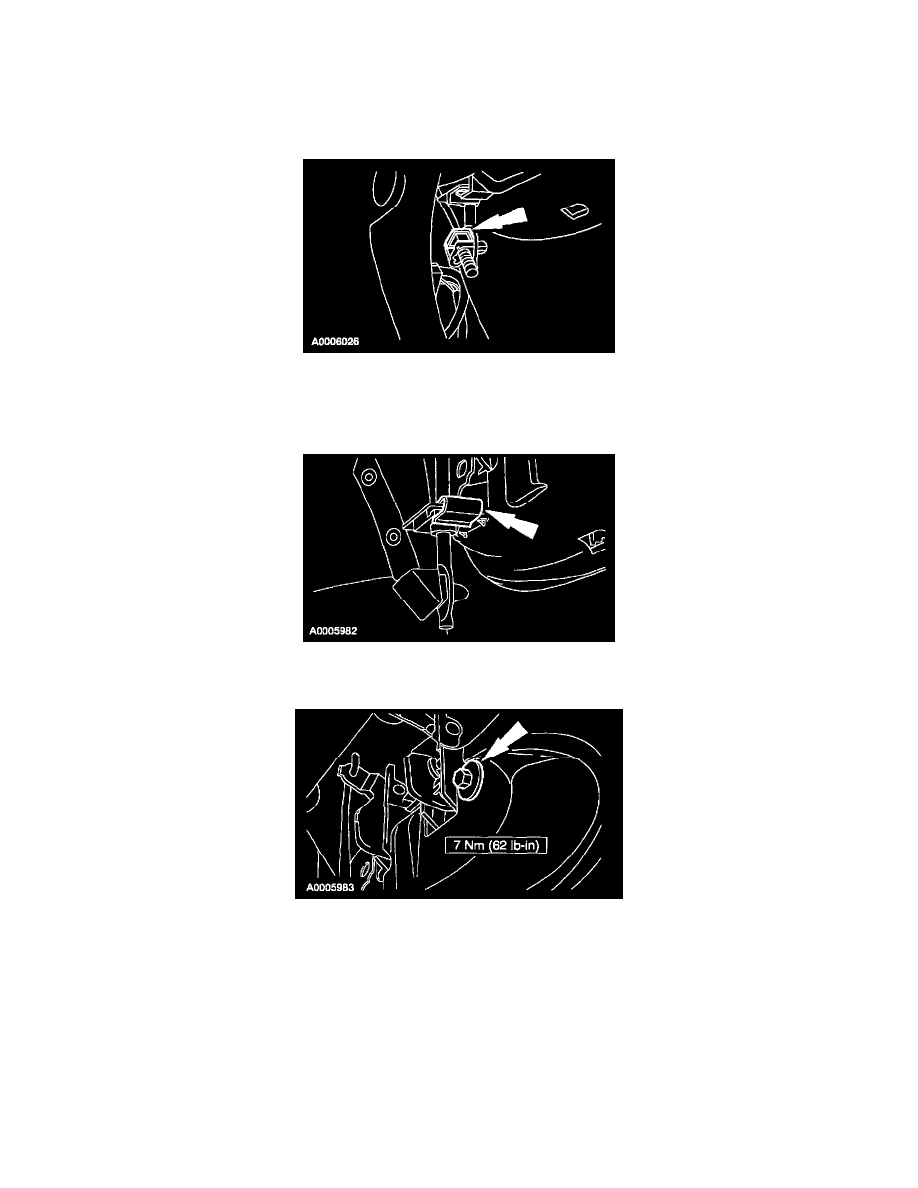

3. Disconnect the exterior door handle actuating rod from the latch.
^
Open the clip.
Early Build Vehicles
4. Unclip the lock rod guide and remove the guide from the bracket.
^
Discard the lock rod guide bushing.
5. Remove the two bolts and the exterior door handle.
Late Build Vehicles
