Liftgate Window Glass: Service and Repair

REMOVAL

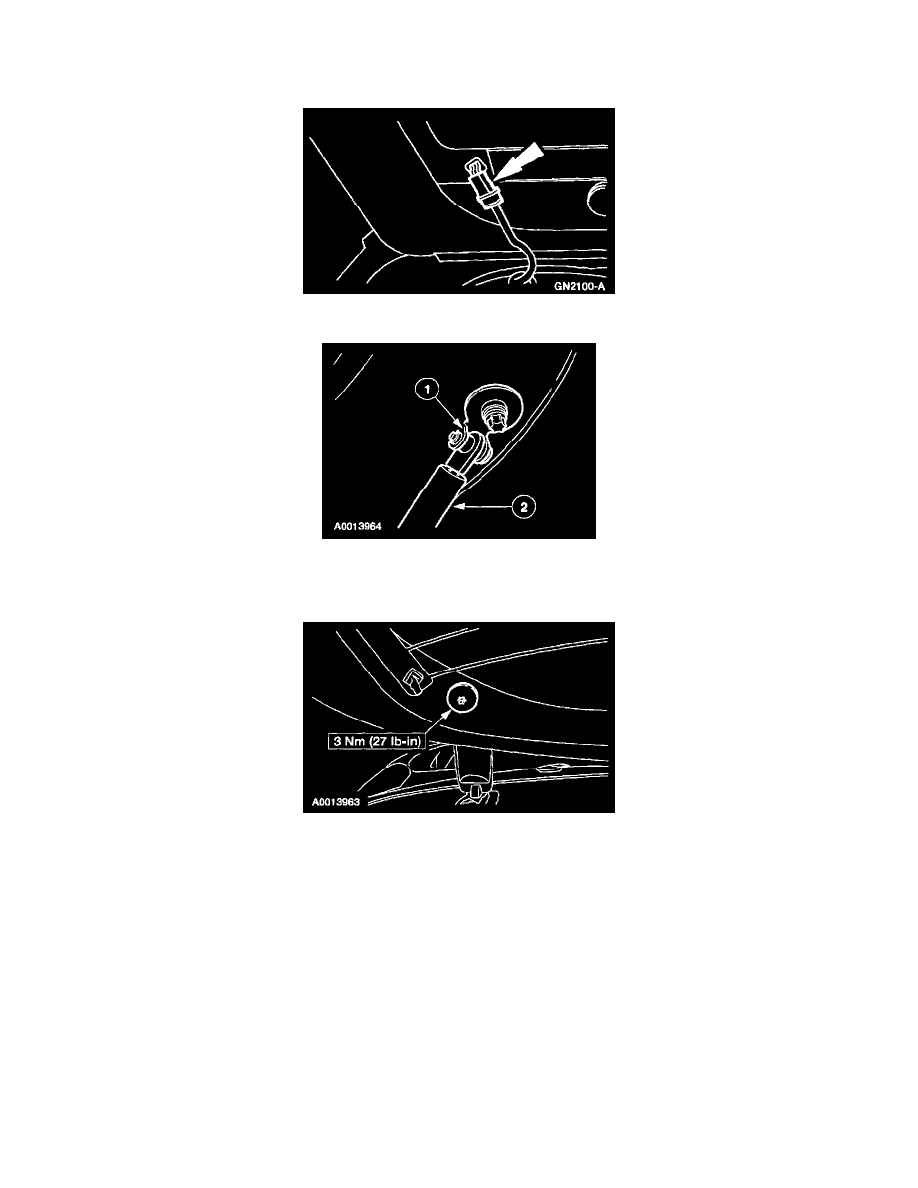

1. Remove the rear wiper motor.

2. Disconnect the two rear window defogger electrical connectors.

3. Remove the two liftgate support cylinders.

1

Remove the two E-clips.

2

Remove the two liftgate support cylinders.

4. Remove the LH and RH nut and liftgate window glass.

INSTALLATION

1. To install, reverse the removal procedure.

NOTE:  Transfer components as necessary.
