Sable V6-3.0L DOHC VIN S (2002)

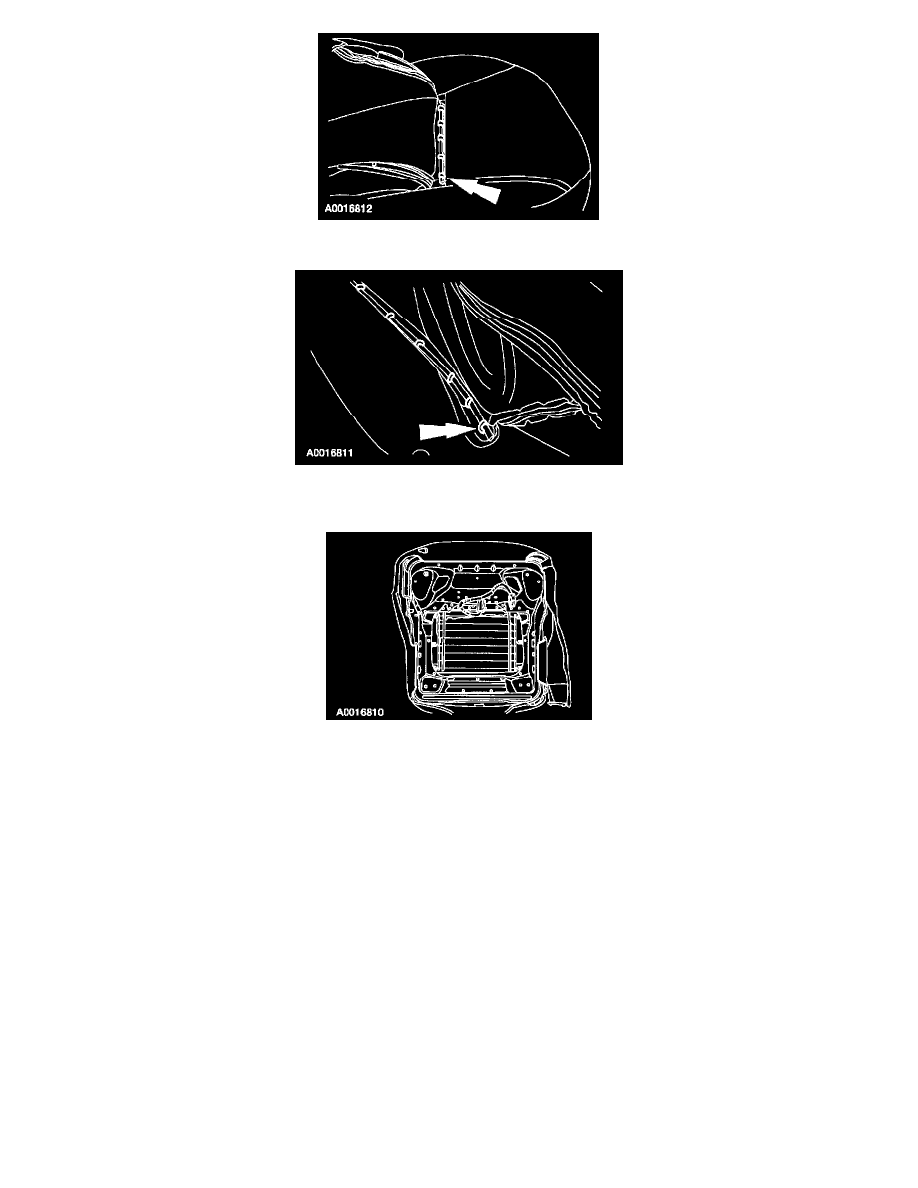

1. Position the upholstery to the pad. Install the center hog rigs.
2. Position the upholstery, then install the hog rings (seven per side).
3. Install the seat cushion frame.
4. Fasten the J-clips and install the wire harness (if equipped).
5. Install the seat track.
6. Install the seat backrest.
7. Install the driver seat.
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS,
NOTES AND INSTRUCTIONS IN THE DRIVER SEAT REMOVAL AND INSTALLATION PROCEDURE.
8. Reactivate the supplemental restraint system (SRS).
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS,
NOTES AND INSTRUCTIONS IN THE SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION
PROCEDURE.
9. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM
THE VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF
THE VEHICLE SAFETY STANDARDS.
10. Check file active restraint system for correct operation.
Passenger Side
